ExtremeValueDistribution
statistics: ExtremeValueDistribution
Extreme value probability distribution object.
A ExtremeValueDistribution
object consists of parameters, a model
description, and sample data for an extreme value probability distribution.
The extreme value distribution is also known as the Gumbel distribution for maxima, and it is a limiting distribution for the maximum of a large number of samples from a continuous distribution. It is defined by location parameter mu and scale parameter sigma.
There are several ways to create a ExtremeValueDistribution
object.
fitdist
function.
makedist
function.
ExtremeValueDistribution (mu,
sigma)
to create an extreme value distribution with specified
parameter values.
ExtremeValueDistribution.fit (x,
alpha, censor, freq, options)
to fit a
distribution to the data in x using the same input arguments as the
evfit
function.
It is highly recommended to use fitdist
and makedist
functions to create probability distribution objects, instead of the
constructor and the aforementioned static method.
Further information about the Gumbel distribution can be found at https://en.wikipedia.org/wiki/Gumbel_distribution
See also: fitdist, makedist, evcdf, evinv, evpdf, evrnd, evfit, evlike, evstat
Source Code: ExtremeValueDistribution
A scalar value characterizing the location of the
extreme value distribution. You can access the mu
property using dot name assignment.
## Create an Extreme Value distribution with default parameters pd = makedist ("ExtremeValue") ## Query parameter 'mu' (location parameter) pd.mu ## Set parameter 'mu' pd.mu = 2 ## Use this to initialize or modify the location parameter of an Extreme Value ## distribution. The location parameter must be a real scalar. pd = ExtremeValueDistribution extreme value distribution mu = 0 sigma = 1 ans = 0 pd = ExtremeValueDistribution extreme value distribution mu = 2 sigma = 1 |
## Create an Extreme Value distribution object by calling its constructor pd = ExtremeValueDistribution (1.5, 0.5) ## Query parameter 'mu' pd.mu ## This demonstrates direct construction with a specific location parameter, ## useful for modeling the position of maxima in data sets. pd = ExtremeValueDistribution extreme value distribution mu = 1.5 sigma = 0.5 ans = 1.5000 |
A positive scalar value characterizing the scale of the
extreme value distribution. You can access the sigma
property using dot name assignment.
## Create an Extreme Value distribution with default parameters pd = makedist ("ExtremeValue") ## Query parameter 'sigma' (scale parameter) pd.sigma ## Set parameter 'sigma' pd.sigma = 0.8 ## Use this to initialize or modify the scale parameter in an Extreme Value ## distribution. The scale parameter must be a positive real scalar. pd = ExtremeValueDistribution extreme value distribution mu = 0 sigma = 1 ans = 1 pd = ExtremeValueDistribution extreme value distribution mu = 0 sigma = 0.8 |
## Create an Extreme Value distribution object by calling its constructor pd = ExtremeValueDistribution (1.5, 0.5) ## Query parameter 'sigma' pd.sigma ## This shows how to set the scale parameter directly via the constructor, ## ideal for modeling the spread in extreme value data. pd = ExtremeValueDistribution extreme value distribution mu = 1.5 sigma = 0.5 ans = 0.5000 |
A character vector specifying the name of the probability distribution object. This property is read-only.
A scalar integer value specifying the number of parameters characterizing the probability distribution. This property is read-only.
A cell array of character vectors with each element containing the name of a distribution parameter. This property is read-only.
A cell array of character vectors with each element containing a short description of a distribution parameter. This property is read-only.
A numeric vector containing the values of the distribution
parameters. This property is read-only. You can change the distribution
parameters by assigning new values to the mu
and sigma
properties.
A numeric matrix containing the variance-covariance of the parameter estimates. Diagonal elements contain the variance of each estimated parameter, and non-diagonal elements contain the covariance between the parameter estimates. The covariance matrix is only meaningful when the distribution was fitted to data. If the distribution object was created with fixed parameters, or a parameter of a fitted distribution is modified, then all elements of the variance-covariance are zero. This property is read-only.
A logical vector specifying which parameters are fixed and
which are estimated. true
values correspond to fixed parameters,
false
values correspond to parameter estimates. This property is
read-only.
A numeric vector specifying the truncation interval for the
probability distribution. First element contains the lower boundary,
second element contains the upper boundary. This property is read-only.
You can only truncate a probability distribution with the
truncate
method.
A logical scalar value specifying whether a probability distribution is truncated or not. This property is read-only.
A scalar structure containing the following fields:
data
: a numeric vector containing the data used for
distribution fitting.
cens
: a numeric vector of logical values indicating
censoring information corresponding to the elements of the data used for
distribution fitting. If no censoring vector was used for distribution
fitting, then this field defaults to an empty array.
freq
: a numeric vector of non-negative integer values
containing the frequency information corresponding to the elements of the
data used for distribution fitting. If no frequency vector was used for
distribution fitting, then this field defaults to an empty array.
ExtremeValueDistribution: p = cdf (pd, x)
ExtremeValueDistribution: p = cdf (pd, x, "upper"
)
p = cdf (pd, x)
computes the CDF of the
probability distribution object, pd, evaluated at the values in
x.
p = cdf (…,
returns the complement of
the CDF of the probability distribution object, pd, evaluated at
the values in x.
"upper"
)

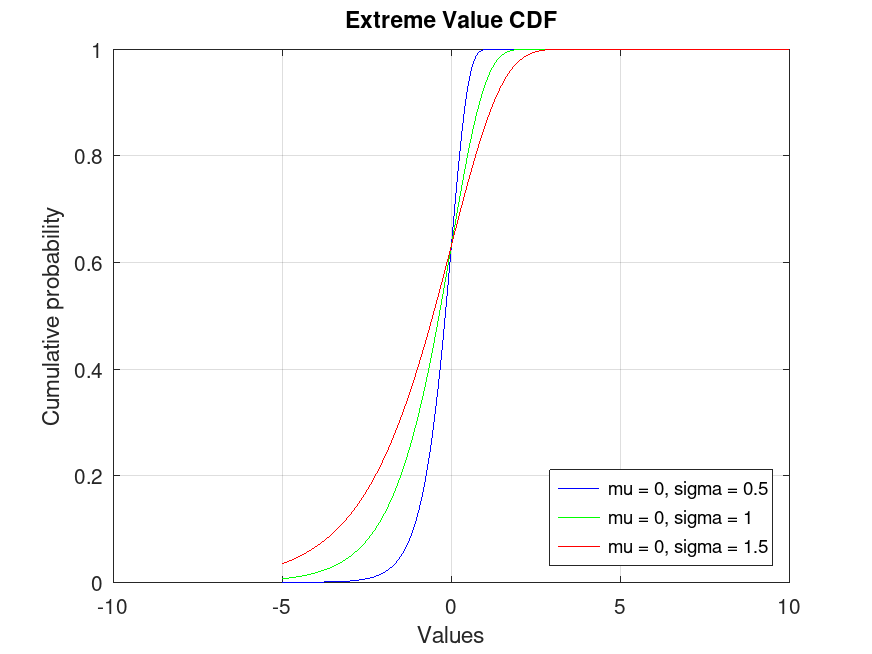

## Plot various CDFs from the Extreme Value distribution x = -5:0.01:10; pd1 = makedist ("ExtremeValue", "mu", 0, "sigma", 0.5); pd2 = makedist ("ExtremeValue", "mu", 0, "sigma", 1); pd3 = makedist ("ExtremeValue", "mu", 0, "sigma", 1.5); p1 = cdf (pd1, x); p2 = cdf (pd2, x); p3 = cdf (pd3, x); plot (x, p1, "-b", x, p2, "-g", x, p3, "-r") grid on legend ({"mu = 0, sigma = 0.5", "mu = 0, sigma = 1", "mu = 0, sigma = 1.5"}, ... "location", "southeast") title ("Extreme Value CDF") xlabel ("Values") ylabel ("Cumulative probability") ## Use this to compute and visualize the cumulative distribution function ## for different Extreme Value distributions, showing how probability ## accumulates over extreme values. |
ExtremeValueDistribution: x = icdf (pd, p)
x = icdf (pd, p)
computes the quantile (the
inverse of the CDF) of the probability distribution object, pd,
evaluated at the values in p.

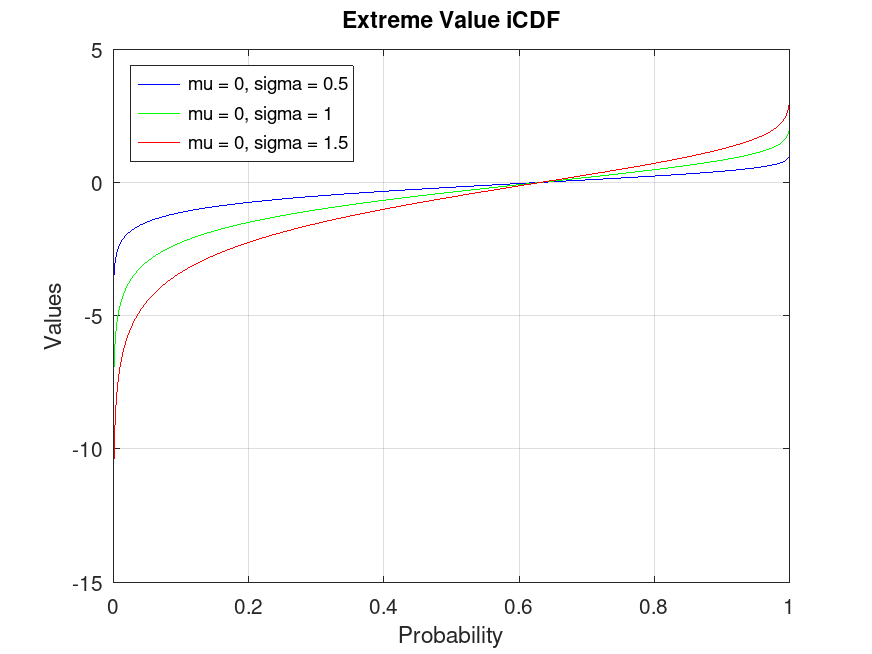

## Plot various iCDFs from the Extreme Value distribution p = 0.001:0.001:0.999; pd1 = makedist ("ExtremeValue", "mu", 0, "sigma", 0.5); pd2 = makedist ("ExtremeValue", "mu", 0, "sigma", 1); pd3 = makedist ("ExtremeValue", "mu", 0, "sigma", 1.5); x1 = icdf (pd1, p); x2 = icdf (pd2, p); x3 = icdf (pd3, p); plot (p, x1, "-b", p, x2, "-g", p, x3, "-r") grid on legend ({"mu = 0, sigma = 0.5", "mu = 0, sigma = 1", "mu = 0, sigma = 1.5"}, ... "location", "northwest") title ("Extreme Value iCDF") xlabel ("Probability") ylabel ("Values") ## This demonstrates the inverse CDF (quantiles) for Extreme Value ## distributions, useful for finding the value corresponding to ## given probabilities in extreme event modeling. |
ExtremeValueDistribution: r = iqr (pd)
r = iqr (pd)
computes the interquartile range of the
probability distribution object, pd.
## Compute the interquartile range for an Extreme Value distribution pd = makedist ("ExtremeValue", "mu", 0, "sigma", 1) iqr_value = iqr (pd) ## Use this to calculate the interquartile range, which measures the spread ## of the middle 50% of the distribution, useful for understanding variability ## in extreme values. pd = ExtremeValueDistribution extreme value distribution mu = 0 sigma = 1 iqr_value = 1.5725 |
ExtremeValueDistribution: m = mean (pd)
m = mean (pd)
computes the mean of the probability
distribution object, pd.
## Compute the mean for different Extreme Value distributions pd1 = makedist ("ExtremeValue", "mu", 0, "sigma", 0.5); pd2 = makedist ("ExtremeValue", "mu", 0, "sigma", 1); mean1 = mean (pd1) mean2 = mean (pd2) ## This shows how to compute the expected value for Extreme Value ## distributions with different scale parameters. mean1 = -0.2886 mean2 = -0.5772 |
ExtremeValueDistribution: m = median (pd)
m = median (pd)
computes the median of the probability
distribution object, pd.
## Compute the median for different Extreme Value distributions pd1 = makedist ("ExtremeValue", "mu", 0, "sigma", 0.5); pd2 = makedist ("ExtremeValue", "mu", 0, "sigma", 1); median1 = median (pd1) median2 = median (pd2) ## Use this to find the median value, which splits the distribution ## into two equal probability halves. median1 = -0.1833 median2 = -0.3665 |
ExtremeValueDistribution: nlogL = negloglik (pd)
nlogL = negloglik (pd)
computes the negative
loglikelihood of the probability distribution object, pd.
## Compute the negative loglikelihood for a fitted Extreme Value distribution pd = makedist ("ExtremeValue", "mu", 0, "sigma", 1) rand ("seed", 21); data = random (pd, 100, 1); pd_fitted = fitdist (data, "ExtremeValue") nlogL = negloglik (pd_fitted) ## This is useful for assessing the fit of an Extreme Value distribution to ## data, lower values indicate a better fit. pd = ExtremeValueDistribution extreme value distribution mu = 0 sigma = 1 pd_fitted = ExtremeValueDistribution extreme value distribution mu = 0.0386064 [-0.170277, 0.247489] sigma = 1.00962 [0.873423, 1.16706] nlogL = -155.24 |
ExtremeValueDistribution: ci = paramci (pd)
ExtremeValueDistribution: ci = paramci (pd, Name, Value)
ci = paramci (pd)
computes the lower and upper
boundaries of the 95% confidence interval for each parameter of the
probability distribution object, pd.
ci = paramci (pd, Name, Value)
computes the
confidence intervals with additional options specified by
Name-Value
pair arguments listed below.
Name | Value | |
---|---|---|
"Alpha" | A scalar value in the range specifying the significance level for the confidence interval. The default value 0.05 corresponds to a 95% confidence interval. | |
"Parameter" | A character vector or a cell array of
character vectors specifying the parameter names for which to compute
confidence intervals. By default, paramci computes confidence
intervals for all distribution parameters. |
paramci
is meaningful only when pd is fitted to data,
otherwise an empty array, []
, is returned.
## Compute confidence intervals for parameters of a fitted Extreme Value ## distribution pd = makedist ("ExtremeValue", "mu", 0, "sigma", 1) rand ("seed", 21); data = random (pd, 1000, 1); pd_fitted = fitdist (data, "ExtremeValue") ci = paramci (pd_fitted, "Alpha", 0.05) ## Use this to obtain confidence intervals for the estimated parameters (mu ## and sigma), providing a range of plausible values given the data. pd = ExtremeValueDistribution extreme value distribution mu = 0 sigma = 1 pd_fitted = ExtremeValueDistribution extreme value distribution mu = -0.0296144 [-0.0952865, 0.0360578] sigma = 1.00604 [0.95888, 1.05551] ci = -0.095286 0.958880 0.036058 1.055512 |
ExtremeValueDistribution: y = pdf (pd, x)
y = pdf (pd, x)
computes the PDF of the
probability distribution object, pd, evaluated at the values in
x.

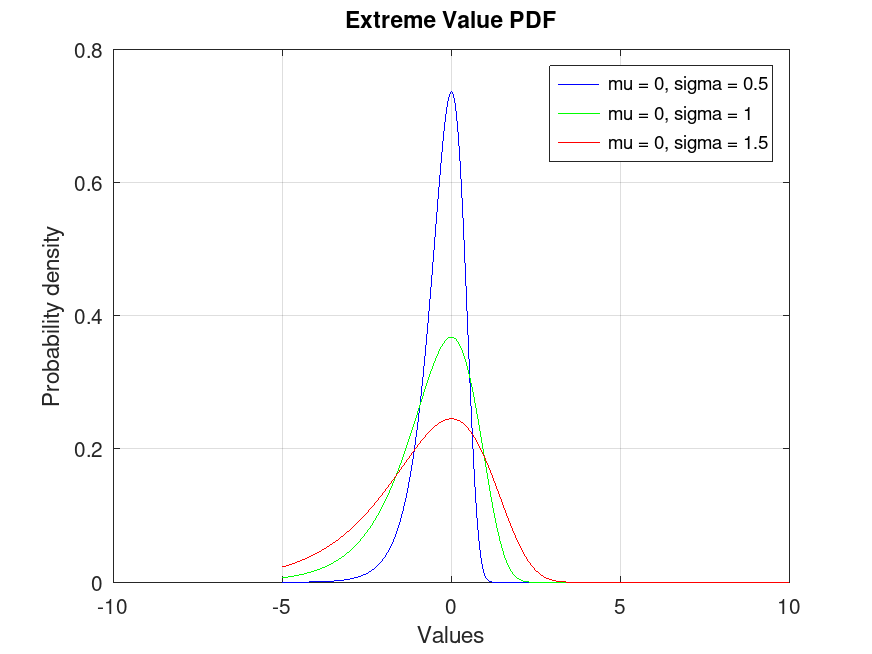

## Plot various PDFs from the Extreme Value distribution x = -5:0.01:10; pd1 = makedist ("ExtremeValue", "mu", 0, "sigma", 0.5); pd2 = makedist ("ExtremeValue", "mu", 0, "sigma", 1); pd3 = makedist ("ExtremeValue", "mu", 0, "sigma", 1.5); y1 = pdf (pd1, x); y2 = pdf (pd2, x); y3 = pdf (pd3, x); plot (x, y1, "-b", x, y2, "-g", x, y3, "-r") grid on legend ({"mu = 0, sigma = 0.5", "mu = 0, sigma = 1", "mu = 0, sigma = 1.5"}, ... "location", "northeast") title ("Extreme Value PDF") xlabel ("Values") ylabel ("Probability density") ## This visualizes the probability density function for Extreme Value ## distributions, showing the likelihood of different extreme values. |
ExtremeValueDistribution: plot (pd)
ExtremeValueDistribution: plot (pd, Name, Value)
ExtremeValueDistribution: h = plot (…)
plot (pd)
plots a probability density function (PDF) of the
probability distribution object pd. If pd contains data,
which have been fitted by fitdist
, the PDF is superimposed over a
histogram of the data.
plot (pd, Name, Value)
specifies additional
options with the Name-Value
pair arguments listed below.
Name | Value | |
---|---|---|
"PlotType" | A character vector specifying the plot
type. "pdf" plots the probability density function (PDF). When
pd is fit to data, the PDF is superimposed on a histogram of the
data. "cdf" plots the cumulative density function (CDF). When
pd is fit to data, the CDF is superimposed over an empirical CDF.
"probability" plots a probability plot using a CDF of the data
and a CDF of the fitted probability distribution. This option is
available only when pd is fitted to data. | |
"Discrete" | A logical scalar to specify whether to
plot the PDF or CDF of a discrete distribution object as a line plot or a
stem plot, by specifying false or true , respectively. By
default, it is true for discrete distributions and false
for continuous distributions. When pd is a continuous distribution
object, option is ignored. | |
"Parent" | An axes graphics object for plot. If
not specified, the plot function plots into the current axes or
creates a new axes object if one does not exist. |
h = plot (…)
returns a graphics handle to the plotted
objects.

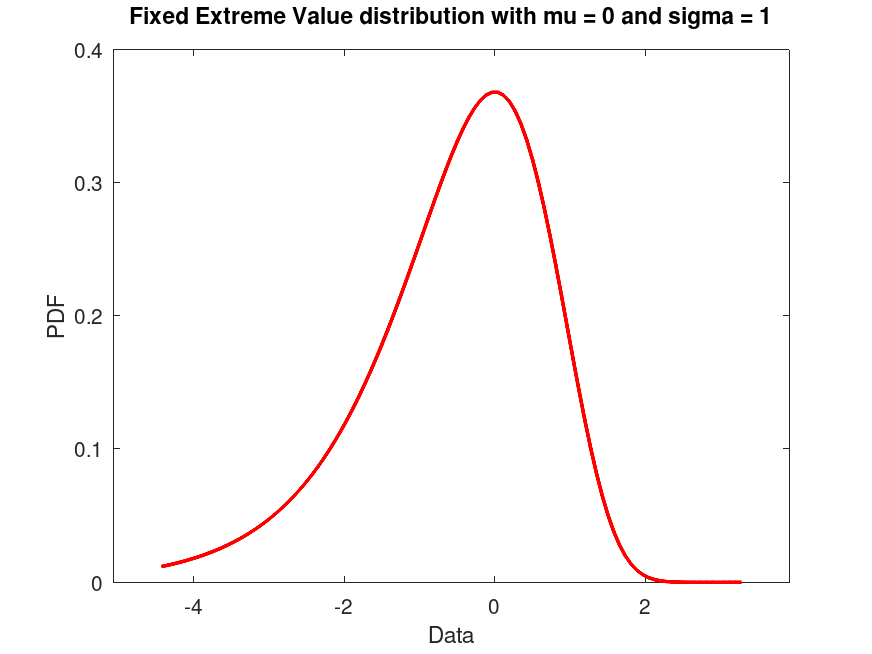

## Create an Extreme Value distribution with fixed parameters mu = 0 and ## sigma = 1 and plot its PDF. pd = makedist ("ExtremeValue", "mu", 0, "sigma", 1) plot (pd) title ("Fixed Extreme Value distribution with mu = 0 and sigma = 1") pd = ExtremeValueDistribution extreme value distribution mu = 0 sigma = 1 |

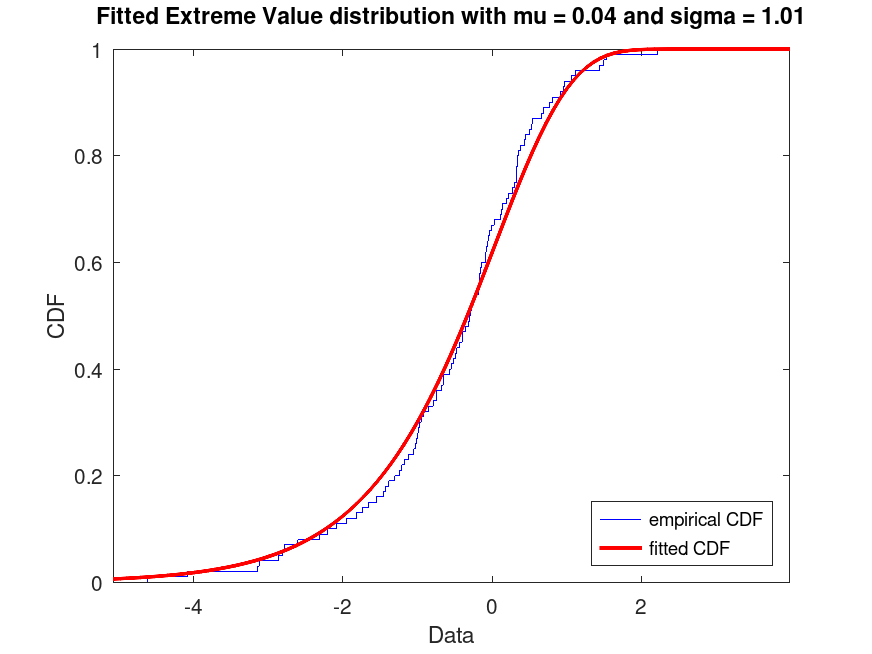

## Generate a data set of 100 random samples from an Extreme Value ## distribution with parameters mu = 0 and sigma = 1. Fit an Extreme Value ## distribution to this data and plot its CDF superimposed over an empirical ## CDF. pd_fixed = makedist ("ExtremeValue", "mu", 0, "sigma", 1) rand ("seed", 21); data = random (pd_fixed, 100, 1); pd_fitted = fitdist (data, "ExtremeValue") plot (pd_fitted, "PlotType", "cdf") txt = "Fitted Extreme Value distribution with mu = %0.2f and sigma = %0.2f"; title (sprintf (txt, pd_fitted.mu, pd_fitted.sigma)) legend ({"empirical CDF", "fitted CDF"}, "location", "southeast") ## Use this to visualize the fitted CDF compared to the empirical CDF of the ## data, useful for assessing model fit. pd_fixed = ExtremeValueDistribution extreme value distribution mu = 0 sigma = 1 pd_fitted = ExtremeValueDistribution extreme value distribution mu = 0.0386064 [-0.170277, 0.247489] sigma = 1.00962 [0.873423, 1.16706] |

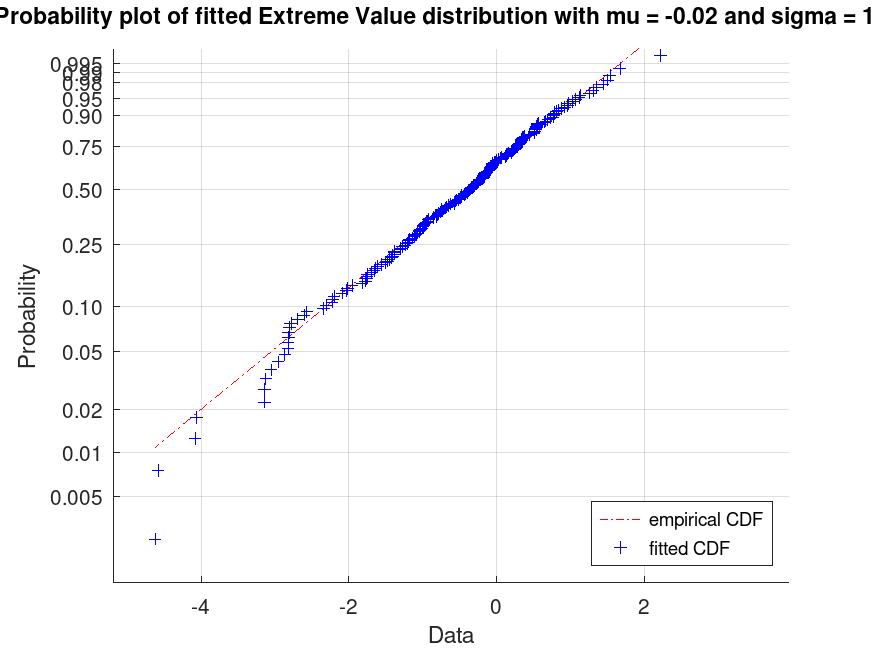

## Generate a data set of 200 random samples from an Extreme Value ## distribution with parameters mu = 0 and sigma = 1. Display a probability ## plot for the Extreme Value distribution fit to the data. pd_fixed = makedist ("ExtremeValue", "mu", 0, "sigma", 1) rand ("seed", 21); data = random (pd_fixed, 200, 1); pd_fitted = fitdist (data, "ExtremeValue") plot (pd_fitted, "PlotType", "probability") txt = strcat ("Probability plot of fitted Extreme Value", ... " distribution with mu = %0.2f and sigma = %0.2f"); title (sprintf (txt, pd_fitted.mu, pd_fitted.sigma)) legend ({"empirical CDF", "fitted CDF"}, "location", "southeast") ## This creates a probability plot to compare the fitted distribution to the ## data, useful for checking if the Extreme Value model is appropriate. pd_fixed = ExtremeValueDistribution extreme value distribution mu = 0 sigma = 1 pd_fitted = ExtremeValueDistribution extreme value distribution mu = -0.0245873 [-0.173577, 0.124402] sigma = 1.01892 [0.917514, 1.13153] |
ExtremeValueDistribution: [nlogL, param] = proflik (pd, pnum)
ExtremeValueDistribution: [nlogL, param] = proflik (pd, pnum, "Display"
, display)
ExtremeValueDistribution: [nlogL, param] = proflik (pd, pnum, setparam)
ExtremeValueDistribution: [nlogL, param] = proflik (pd, pnum, setparam, "Display"
, display)
[nlogL, param] = proflik (pd, pnum)
returns a vector nlogL of negative loglikelihood values and a
vector param of corresponding parameter values for the parameter in
the position indicated by pnum. By default, proflik
uses
the lower and upper bounds of the 95% confidence interval and computes
100 equispaced values for the selected parameter. pd must be
fitted to data.
[nlogL, param] = proflik (pd, pnum,
also plots the profile likelihood
against the default range of the selected parameter.
"Display"
, "on"
)
[nlogL, param] = proflik (pd, pnum,
setparam)
defines a user-defined range of the selected parameter.
[nlogL, param] = proflik (pd, pnum,
setparam,
also plots the profile
likelihood against the user-defined range of the selected parameter.
"Display"
, "on"
)
For the extreme value distribution, pnum = 1
selects the
parameter mu
and pnum = 2
selects the parameter
sigma
.
When opted to display the profile likelihood plot, proflik
also
plots the baseline loglikelihood computed at the lower bound of the 95%
confidence interval and estimated maximum likelihood. The latter might
not be observable if it is outside of the used-defined range of parameter
values.

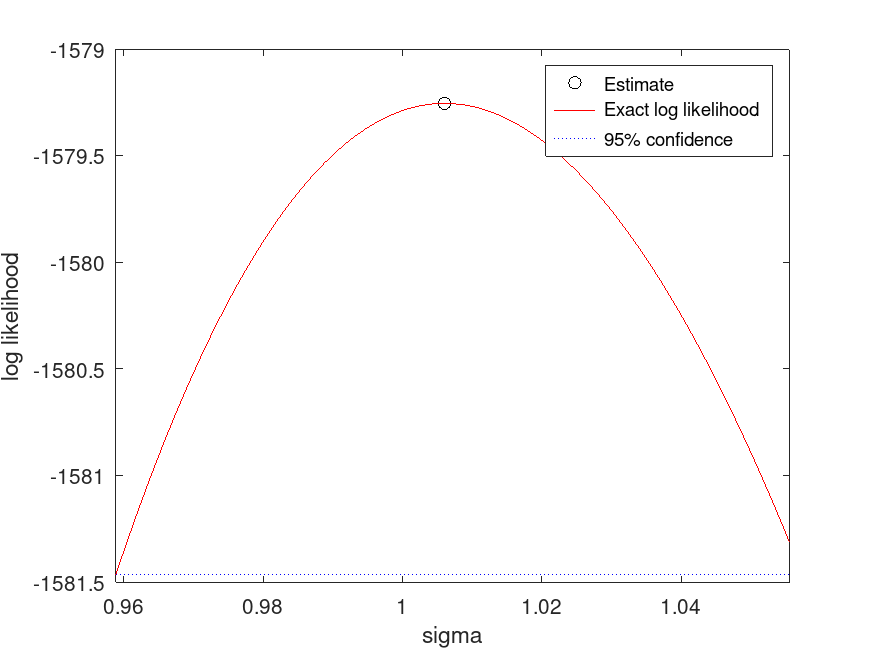

## Compute and plot the profile likelihood for the scale parameter of a fitted ## Extreme Value distribution pd = makedist ("ExtremeValue", "mu", 0, "sigma", 1) rand ("seed", 21); data = random (pd, 1000, 1); pd_fitted = fitdist (data, "ExtremeValue") [nlogL, param] = proflik (pd_fitted, 2, "Display", "on"); ## Use this to analyze the profile likelihood of the scale parameter (sigma), ## helping to understand the uncertainty in parameter estimates. pd = ExtremeValueDistribution extreme value distribution mu = 0 sigma = 1 pd_fitted = ExtremeValueDistribution extreme value distribution mu = -0.0296144 [-0.0952865, 0.0360578] sigma = 1.00604 [0.95888, 1.05551] |
ExtremeValueDistribution: r = random (pd)
ExtremeValueDistribution: r = random (pd, rows)
ExtremeValueDistribution: r = random (pd, rows, cols, …)
ExtremeValueDistribution: r = random (pd, [sz])
r = random (pd)
returns a random number from the
distribution object pd.
When called with a single size argument, betarnd
returns a square
matrix with the dimension specified. When called with more than one
scalar argument, the first two arguments are taken as the number of rows
and columns and any further arguments specify additional matrix
dimensions. The size may also be specified with a row vector of
dimensions, sz.

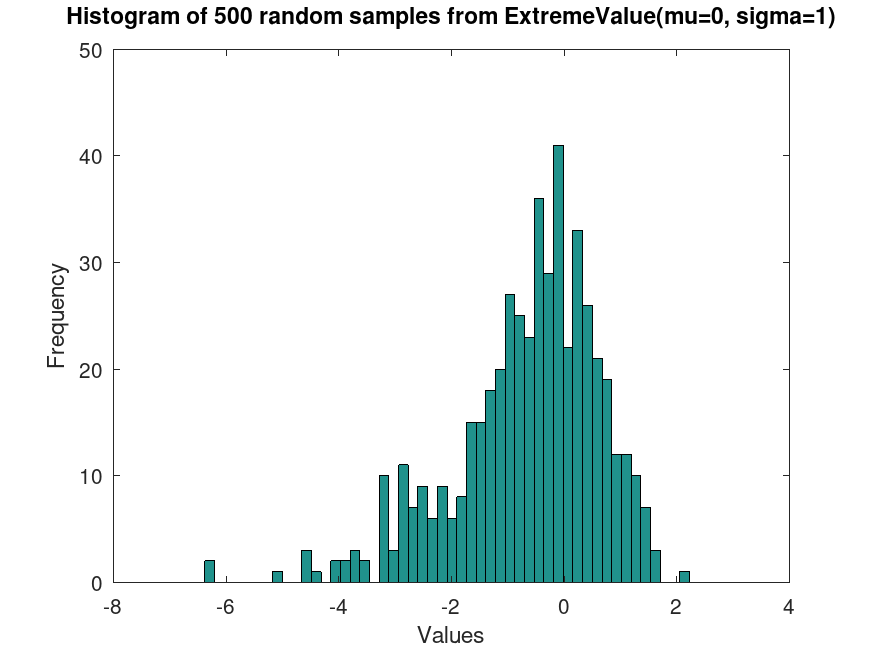

## Generate random samples from an Extreme Value distribution pd = makedist ("ExtremeValue", "mu", 0, "sigma", 1) rand ("seed", 21); samples = random (pd, 500, 1); hist (samples, 50) title ("Histogram of 500 random samples from ExtremeValue(mu=0, sigma=1)") xlabel ("Values") ylabel ("Frequency") ## This generates random samples from an Extreme Value distribution, useful ## for simulating extreme events like maximum values in data sets. pd = ExtremeValueDistribution extreme value distribution mu = 0 sigma = 1 |
ExtremeValueDistribution: s = std (pd)
s = std (pd)
computes the standard deviation of the
probability distribution object, pd.
## Compute the standard deviation for an Extreme Value distribution pd = makedist ("ExtremeValue", "mu", 0, "sigma", 1) std_value = std (pd) ## Use this to calculate the standard deviation, which measures the variability ## in extreme values. pd = ExtremeValueDistribution extreme value distribution mu = 0 sigma = 1 std_value = 1.2825 |
ExtremeValueDistribution: t = truncate (pd, lower, upper)
t = truncate (pd, lower, upper)
returns a
probability distribution t, which is the probability distribution
pd truncated to the specified interval with lower limit, lower,
and upper limit, upper. If pd is fitted to data with
fitdist
, the returned probability distribution t is not
fitted, does not contain any data or estimated values, and it is as it
has been created with the makedist function, but it includes the
truncation interval.

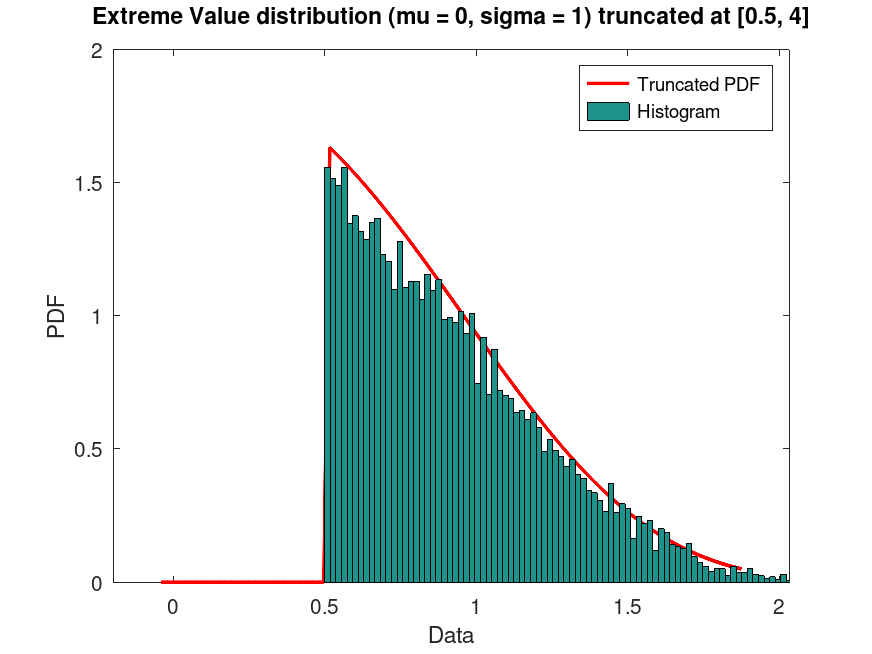

## Plot the PDF of an Extreme Value distribution, with parameters mu = 0 ## and sigma = 1, truncated at [-2, 2] intervals. Generate 10000 random ## samples from this truncated distribution and superimpose a histogram scaled ## accordingly pd = makedist ("ExtremeValue", "mu", 0, "sigma", 1) t = truncate (pd, 0.5, 4) rand ("seed", 21); data = random (t, 10000, 1); ## Plot histogram and fitted PDF plot (t) hold on hist (data, 100, 50) hold off title ("Extreme Value distribution (mu = 0, sigma = 1) truncated at [0.5, 4]") legend ("Truncated PDF", "Histogram") ## This demonstrates truncating an Extreme Value distribution to a specific ## range and visualizing the resulting distribution with random samples. pd = ExtremeValueDistribution extreme value distribution mu = 0 sigma = 1 t = ExtremeValueDistribution extreme value distribution mu = 0 sigma = 1 Truncated to the interval [0.5, 4] |
ExtremeValueDistribution: v = var (pd)
v = var (pd)
computes the variance of the
probability distribution object, pd.
## Compute the variance for an Extreme Value distribution pd = makedist ("ExtremeValue", "mu", 0, "sigma", 1) var_value = var (pd) ## Use this to calculate the variance, which quantifies the spread of the ## extreme values in the distribution. pd = ExtremeValueDistribution extreme value distribution mu = 0 sigma = 1 var_value = 1.6449 |
