Function Reference: hninv

statistics: x = hninv (p, mu, sigma)

Inverse of the half-normal cumulative distribution function (iCDF).

For each element of p, compute the quantile (the inverse of the CDF) of the half-normal distribution with location parameter mu and scale parameter sigma. The size of x is the common size of p, mu, and sigma. A scalar input functions as a constant matrix of the same size as the other inputs.

Further information about the half-normal distribution can be found at https://en.wikipedia.org/wiki/Half-normal_distribution

See also: hncdf, hnpdf, hnrnd, hnfit, hnlike, hnstat

Source Code: hninv

Example: 1

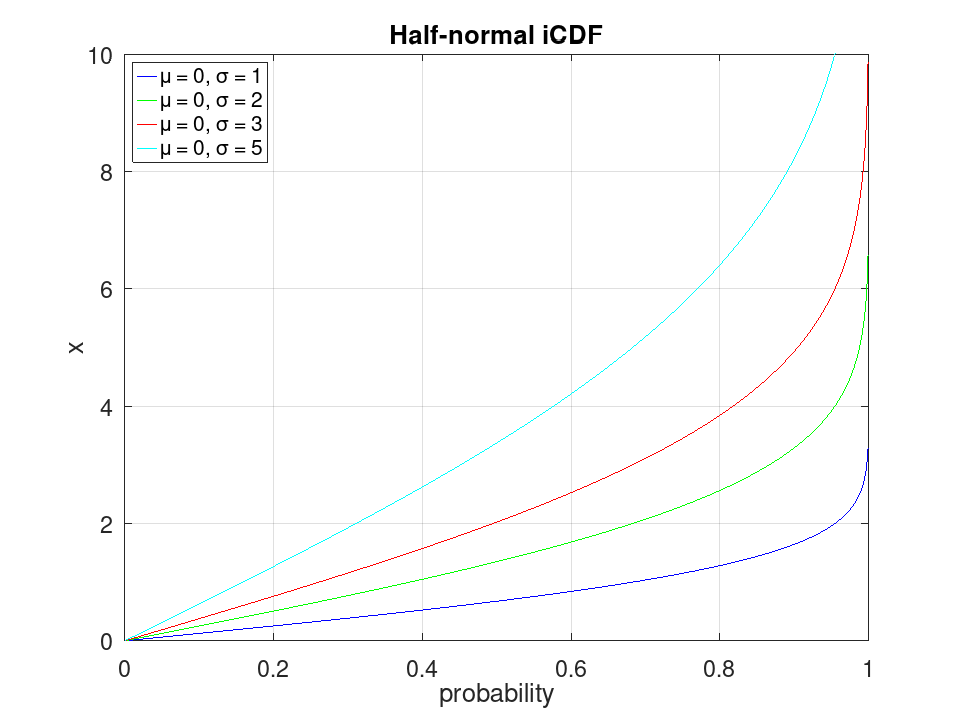

Plot various iCDFs from the half-normal distribution

 p = 0.001:0.001:0.999;
 x1 = hninv (p, 0, 1);
 x2 = hninv (p, 0, 2);
 x3 = hninv (p, 0, 3);
 x4 = hninv (p, 0, 5);
 plot (p, x1, '-b', p, x2, '-g', p, x3, '-r', p, x4, '-c')
 grid on
 ylim ([0, 10])
 legend ({'μ = 0, σ = 1', 'μ = 0, σ = 2', ...
          'μ = 0, σ = 3', 'μ = 0, σ = 5'}, 'location', 'northwest')
 title ('Half-normal iCDF')
 xlabel ('probability')
 ylabel ('x')
plotted figure
