Function Reference: nakapdf

statistics: y = nakapdf (x, mu, omega)

Nakagami probability density function (PDF).

For each element of x, compute the probability density function (PDF) of the Nakagami distribution with shape parameter mu and spread parameter omega. The size of y is the common size of x, mu, and omega. A scalar input functions as a constant matrix of the same size as the other inputs.

Both parameters must be positive reals and mu >= 0.5. For mu < 0.5 or omega <= 0, NaN is returned.

Further information about the Nakagami distribution can be found at https://en.wikipedia.org/wiki/Nakagami_distribution

Input arguments must be double or single; integer, logical, and character arrays are rejected. MATLAB accepts a character array and evaluates it at the character codes, which Octave deliberately does not, since a character array is an integer type and integers are refused too.

See also: nakacdf, nakainv, nakarnd, nakafit, nakalike, nakastat

Source Code: nakapdf

Plot various PDFs from the Nakagami distribution

 x = 0:0.01:3;
 y1 = nakapdf (x, 0.5, 1);
 y2 = nakapdf (x, 1, 1);
 y3 = nakapdf (x, 1, 2);
 y4 = nakapdf (x, 1, 3);
 y5 = nakapdf (x, 2, 1);
 y6 = nakapdf (x, 2, 2);
 y7 = nakapdf (x, 5, 1);
 plot (x, y1, '-r', x, y2, '-g', x, y3, '-y', x, y4, '-m', ...
       x, y5, '-k', x, y6, '-b', x, y7, '-c')
 grid on
 xlim ([0, 3])
 ylim ([0, 2])
 legend ({'μ = 0.5, ω = 1', 'μ = 1, ω = 1', 'μ = 1, ω = 2', ...
          'μ = 1, ω = 3', 'μ = 2, ω = 1', 'μ = 2, ω = 2', ...
          'μ = 5, ω = 1'}, 'location', 'northeast')
 title ('Nakagami PDF')
 xlabel ('values in x')
 ylabel ('density')

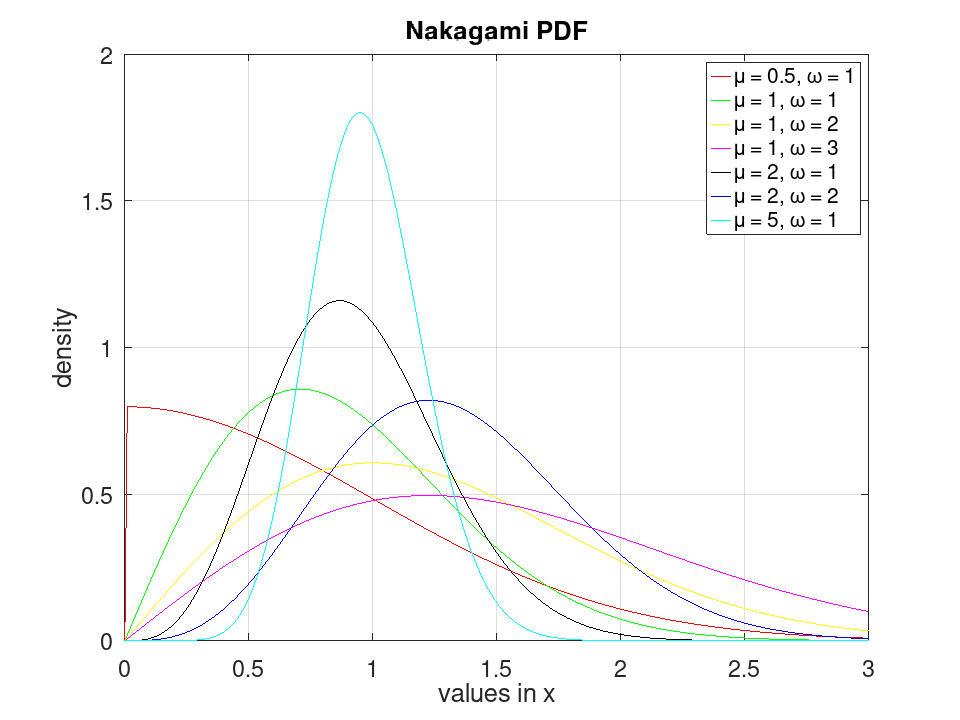

plotted figure
