Statistics: MultinomialDistribution

Class Definition: `MultinomialDistribution`

statistics: MultinomialDistribution

Multinomial probability distribution object.

A MultinomialDistribution object consists of parameters, a model description, and sample data for a multinomial probability distribution.

The multinomial distribution is a discrete probability distribution that models the outcomes of n independent trials of a k-category system, where each trial has a probability of falling into each category. It is defined by the vector of probabilities for each outcome.

There are several ways to create a MultinomialDistribution object.

Create a distribution with specified parameter values using the makedist function.
Use the constructor MultinomialDistribution (Probabilities) to create a multinomial distribution with specified parameter values.

It is highly recommended to use the makedist function to create probability distribution objects, instead of the constructor.

Further information about the multinomial distribution can be found at https://en.wikipedia.org/wiki/Multinomial_distribution

See also: makedist, mnpdf, mnrnd

Source Code: MultinomialDistribution

Properties

A row vector of probabilities for each outcome. You can access the Probabilities property using dot name assignment.

Example: 1


 ## Create a Multinomial distribution with default parameters
 pd = MultinomialDistribution ();

 ## Query parameter 'Probabilities' (outcome probabilities)
 pd.Probabilities

 ## Use this to query the vector of probabilities for each outcome in a
 ## Multinomial distribution. The probabilities must sum to 1 and represent
 ## the likelihood of each category in a single trial.

ans =

   0.5000   0.5000

Example: 2


 ## Create a Multinomial distribution with specified parameters
 pd = MultinomialDistribution ([0.1, 0.2, 0.3, 0.2, 0.1, 0.1]);

 ## Query parameter 'Probabilities'
 pd.Probabilities

 ## Set parameter 'Probabilities'
 pd.Probabilities = [0.4, 0.3, 0.3]

 ## Use this to initialize or modify the probabilities vector in a Multinomial
 ## distribution. The vector must be positive real scalars summing to 1, useful
 ## for modeling categorical outcomes like dice rolls or survey responses.

ans =

   0.1000   0.2000   0.3000   0.2000   0.1000   0.1000

pd =
  MultinomialDistribution

  Probabilities:
    0.4000    0.3000    0.3000

Example: 3


 ## Create a Multinomial distribution object by calling its constructor
 pd = MultinomialDistribution ([1/6, 1/6, 1/6, 1/6, 1/6, 1/6]);

 ## Query parameter 'Probabilities'
 pd.Probabilities

 ## This demonstrates direct construction with specific probabilities,
 ## ideal for modeling fair or biased categorical events, such as a dice roll.

ans =

   0.1667   0.1667   0.1667   0.1667   0.1667   0.1667

A character vector specifying the name of the probability distribution object. This property is read-only.

A scalar integer value specifying the number of parameters characterizing the probability distribution. This property is read-only.

A $1×1$ cell array of character vectors with each element containing the name of a distribution parameter. This property is read-only.

A $1×1$ cell array of character vectors with each element containing a short description of a distribution parameter. This property is read-only.

A numeric vector containing the values of the distribution parameters. This property is read-only. You can change the distribution parameters by assigning new values to the Probabilities property.

A $1×2$ numeric vector specifying the truncation interval for the probability distribution. First element contains the lower boundary, second element contains the upper boundary. This property is read-only. You can only truncate a probability distribution with the truncate method.

A logical scalar value specifying whether a probability distribution is truncated or not. This property is read-only.

Methods

MultinomialDistribution: p = cdf (pd, x)
MultinomialDistribution: p = cdf (pd, x, "upper")

p = cdf (pd, x) computes the CDF of the probability distribution object, pd, evaluated at the values in x.

p = cdf (…, "upper") returns the complement of the CDF of the probability distribution object, pd, evaluated at the values in x.

Example: 1

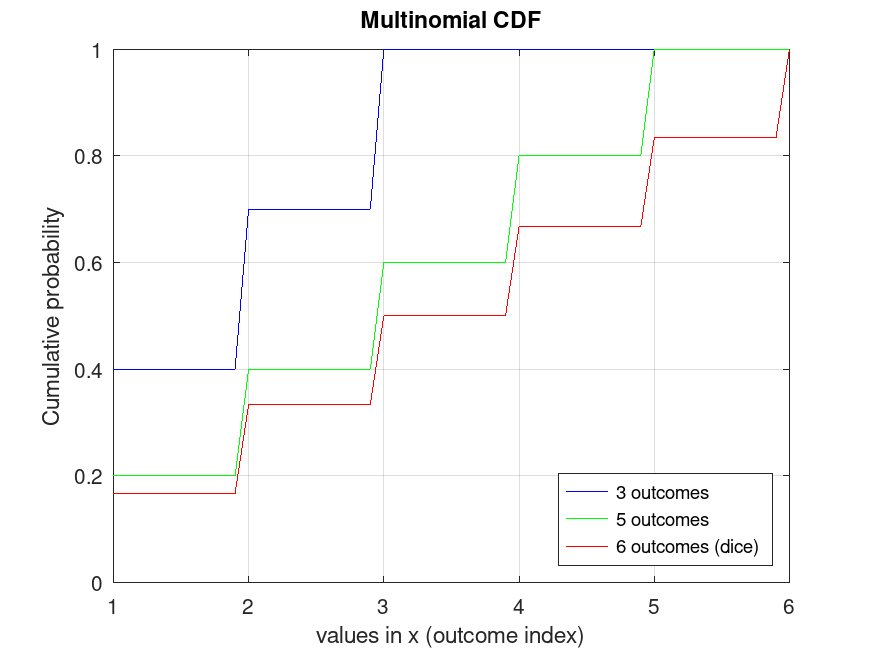

 ## Plot various CDFs from the Multinomial distribution
 x = 1:0.1:6;
 pd1 = MultinomialDistribution ([0.4, 0.3, 0.3]);
 pd2 = MultinomialDistribution ([0.2, 0.2, 0.2, 0.2, 0.2]);
 pd3 = MultinomialDistribution ([1/6, 1/6, 1/6, 1/6, 1/6, 1/6]);
 p1 = cdf (pd1, x);
 p2 = cdf (pd2, x);
 p3 = cdf (pd3, x);
 plot (x, p1, "-b", x, p2, "-g", x, p3, "-r")
 grid on
 legend ({"3 outcomes", "5 outcomes", "6 outcomes (dice)"}, ...
         "location", "southeast")
 title ("Multinomial CDF")
 xlabel ("values in x (outcome index)")
 ylabel ("Cumulative probability")

 ## Use this to compute and visualize the cumulative distribution function
 ## for different Multinomial distributions, showing how probability
 ## accumulates across categorical outcomes, useful in decision analysis.

MultinomialDistribution: p = icdf (pd, p)

p = icdf (pd, x) computes the quantile (the inverse of the CDF) of the probability distribution object, pd, evaluated at the values in x.

Example: 1

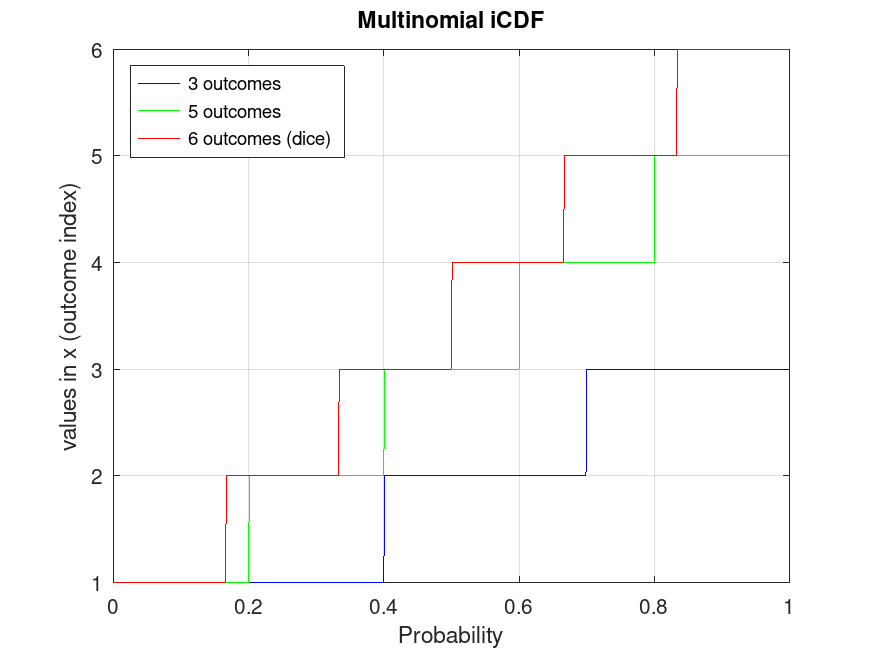

 ## Plot various iCDFs from the Multinomial distribution
 p = 0.001:0.001:0.999;
 pd1 = MultinomialDistribution ([0.4, 0.3, 0.3]);
 pd2 = MultinomialDistribution ([0.2, 0.2, 0.2, 0.2, 0.2]);
 pd3 = MultinomialDistribution ([1/6, 1/6, 1/6, 1/6, 1/6, 1/6]);
 x1 = icdf (pd1, p);
 x2 = icdf (pd2, p);
 x3 = icdf (pd3, p);
 plot (p, x1, "-b", p, x2, "-g", p, x3, "-r")
 grid on
 legend ({"3 outcomes", "5 outcomes", "6 outcomes (dice)"}, ...
         "location", "northwest")
 title ("Multinomial iCDF")
 xlabel ("Probability")
 ylabel ("values in x (outcome index)")

 ## This demonstrates the inverse CDF (quantiles) for Multinomial
 ## distributions, useful for finding outcome thresholds corresponding to
 ## given probabilities, such as in risk assessment.

MultinomialDistribution: r = iqr (pd)

r = iqr (pd) computes the interquartile range of the probability distribution object, pd.

Example: 1


 ## Compute the interquartile range for a Multinomial distribution
 pd = MultinomialDistribution ([0.1, 0.2, 0.3, 0.2, 0.1, 0.1]);
 iqr_value = iqr (pd)

 ## Use this to calculate the interquartile range, which measures the spread
 ## of the middle 50% of the categorical outcomes, helpful for understanding
 ## central variability in discrete data.

iqr_value = 2

MultinomialDistribution: m = mean (pd)

m = mean (pd) computes the mean of the probability distribution object, pd.

Example: 1


 ## Compute the mean for different Multinomial distributions
 pd1 = MultinomialDistribution ([0.4, 0.3, 0.3]);
 pd2 = MultinomialDistribution ([0.2, 0.2, 0.2, 0.2, 0.2]);
 mean1 = mean (pd1)
 mean2 = mean (pd2)

 ## This shows how to compute the expected value for Multinomial
 ## distributions with different probabilities, representing the average
 ## outcome index in categorical data.

mean1 = 1.9000
mean2 = 3

MultinomialDistribution: m = median (pd)

m = median (pd) computes the median of the probability distribution object, pd.

Example: 1


 ## Compute the median for different Multinomial distributions
 pd1 = MultinomialDistribution ([0.4, 0.3, 0.3]);
 pd2 = MultinomialDistribution ([0.2, 0.2, 0.2, 0.2, 0.2]);
 median1 = median (pd1)
 median2 = median (pd2)

 ## Use this to find the median outcome index, which splits the distribution
 ## into two equal probability halves, robust to uneven probabilities.

median1 = 2
median2 = 3

MultinomialDistribution: y = pdf (pd, x)

y = pdf (pd, x) computes the PDF of the probability distribution object, pd, evaluated at the values in x.

Example: 1

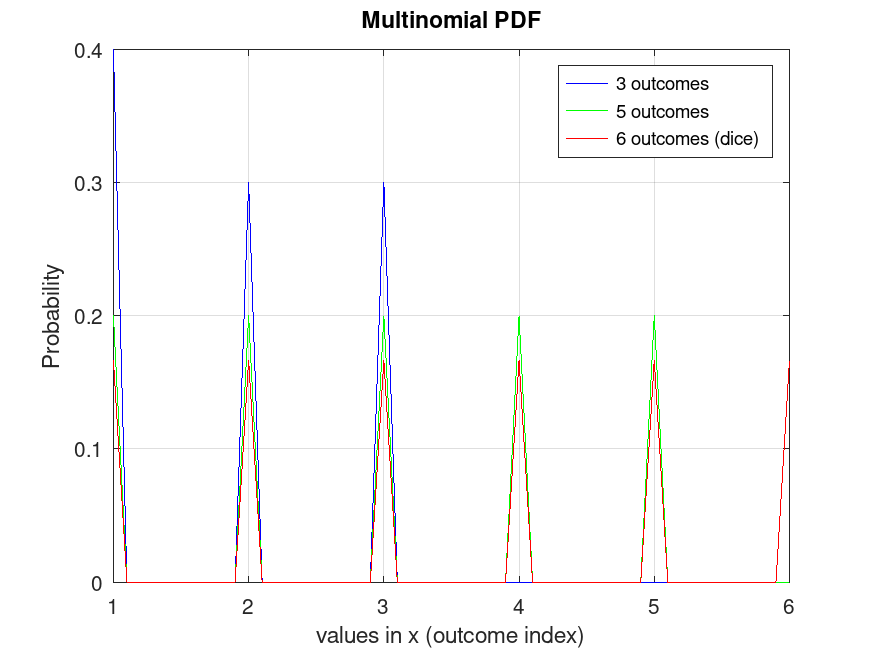

 ## Plot various PDFs from the Multinomial distribution
 x = 1:0.1:6;
 pd1 = MultinomialDistribution ([0.4, 0.3, 0.3]);
 pd2 = MultinomialDistribution ([0.2, 0.2, 0.2, 0.2, 0.2]);
 pd3 = MultinomialDistribution ([1/6, 1/6, 1/6, 1/6, 1/6, 1/6]);
 y1 = pdf (pd1, x);
 y2 = pdf (pd2, x);
 y3 = pdf (pd3, x);
 plot (x, y1, "-b", x, y2, "-g", x, y3, "-r")
 grid on
 legend ({"3 outcomes", "5 outcomes", "6 outcomes (dice)"}, ...
         "location", "northeast")
 title ("Multinomial PDF")
 xlabel ("values in x (outcome index)")
 ylabel ("Probability")

 ## This visualizes the probability mass function for Multinomial
 ## distributions, showing the likelihood for each discrete outcome.

MultinomialDistribution: plot (pd)
MultinomialDistribution: plot (pd, Name, Value)
MultinomialDistribution: h = plot (…)

plot (pd plots a probability density function (PDF) of the probability distribution object pd. If pd contains data, which have been fitted by fitdist, the PDF is superimposed over a histogram of the data.

plot (pd, Name, Value) specifies additional options with the Name-Value pair arguments listed below.

	`Name`	`Value`
`"PlotType"`		A character vector specifying the plot type. `"pdf"` plots the probability density function (PDF). When `pd` is fit to data, the PDF is superimposed on a histogram of the data. `"cdf"` plots the cumulative density function (CDF). When `pd` is fit to data, the CDF is superimposed over an empirical CDF. `"probability"` plots a probability plot using a CDF of the data and a CDF of the fitted probability distribution. This option is available only when `pd` is fitted to data.
`"Discrete"`		A logical scalar to specify whether to plot the PDF or CDF of a discrete distribution object as a line plot or a stem plot, by specifying `false` or `true`, respectively. By default, it is `true` for discrete distributions and `false` for continuous distributions. When `pd` is a continuous distribution object, option is ignored.
`"Parent"`		An axes graphics object for plot. If not specified, the `plot` function plots into the current axes or creates a new axes object if one does not exist.

h = plot (…) returns a graphics handle to the plotted objects.

Example: 1

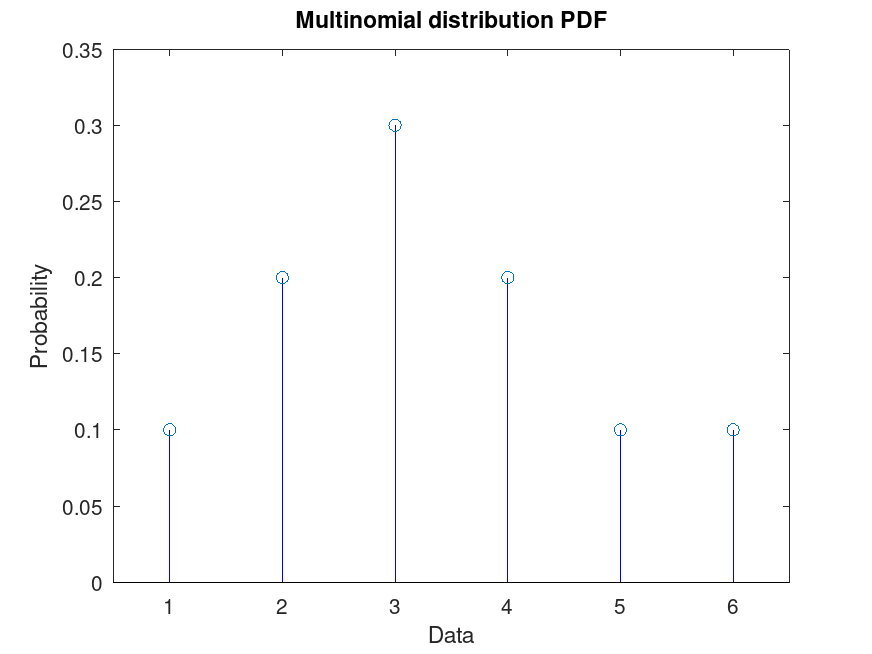

 ## Create a Multinomial distribution with fixed parameters and plot its PDF.
 pd = MultinomialDistribution ([0.1, 0.2, 0.3, 0.2, 0.1, 0.1]);
 plot (pd)
 title ("Multinomial distribution PDF")

Example: 2


 ## Create a Multinomial distribution and plot its CDF.
 pd = MultinomialDistribution ([0.1, 0.2, 0.3, 0.2, 0.1, 0.1]);
 plot (pd, "PlotType", "cdf")
 title ("Multinomial distribution CDF")

 ## Use this to visualize the cumulative distribution function,
 ## useful for understanding probability accumulation across outcomes.

MultinomialDistribution: y = random (pd)
MultinomialDistribution: y = random (pd, rows)
MultinomialDistribution: y = random (pd, rows, cols, …)
MultinomialDistribution: y = random (pd, [sz])

r = random (pd) returns a random number from the distribution object pd.

When called with a single size argument, mnrnd returns a square matrix with the dimension specified. When called with more than one scalar argument, the first two arguments are taken as the number of rows and columns and any further arguments specify additional matrix dimensions. The size may also be specified with a row vector of dimensions, sz.

Example: 1

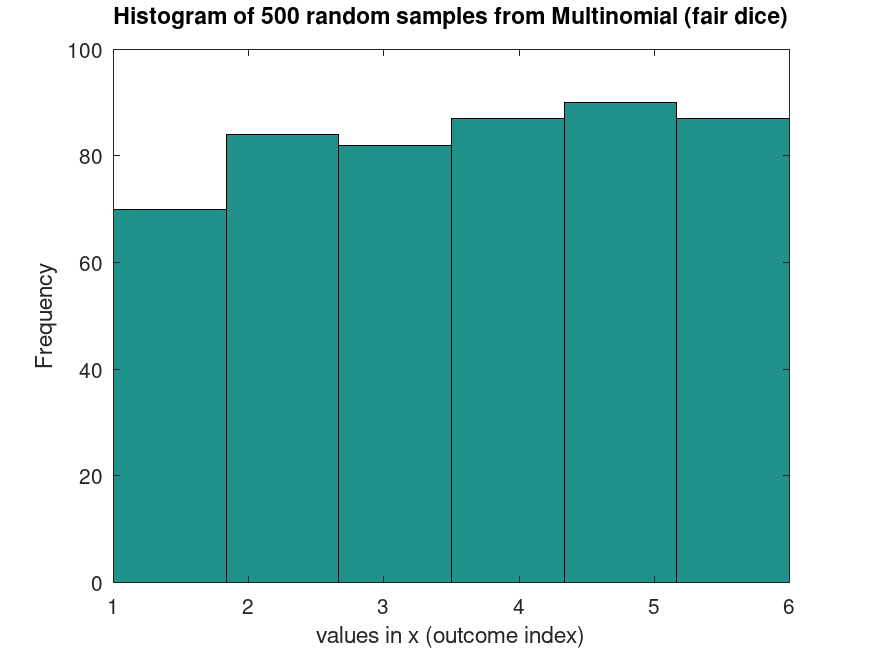

 ## Generate random samples from a Multinomial distribution
 rand ("seed", 21);
 pd = MultinomialDistribution ([1/6, 1/6, 1/6, 1/6, 1/6, 1/6]);
 samples = random (pd, 500, 1);
 hist (samples, 6)
 title ("Histogram of 500 random samples from Multinomial (fair dice)")
 xlabel ("values in x (outcome index)")
 ylabel ("Frequency")

 ## This generates random categorical outcomes from a Multinomial
 ## distribution, useful for simulating events like dice rolls or classifications.

MultinomialDistribution: s = std (pd)

s = std (pd) computes the standard deviation of the probability distribution object, pd.

Example: 1


 ## Compute the standard deviation for a Multinomial distribution
 pd = MultinomialDistribution ([0.1, 0.2, 0.3, 0.2, 0.1, 0.1]);
 std_value = std (pd)

 ## Use this to calculate the standard deviation, which measures the variability
 ## in the outcome indices for categorical data.

std_value = 1.4177

MultinomialDistribution: t = truncate (pd, lower, upper)

t = truncate (pd) returns a probability distribution t, which is the probability distribution pd truncated to the specified interval with lower limit, lower, and upper limit, upper. If pd is fitted to data with fitdist, the returned probability distribution t is not fitted, does not contain any data or estimated values, and it is as it has been created with the makedist function, but it includes the truncation interval.

Example: 1

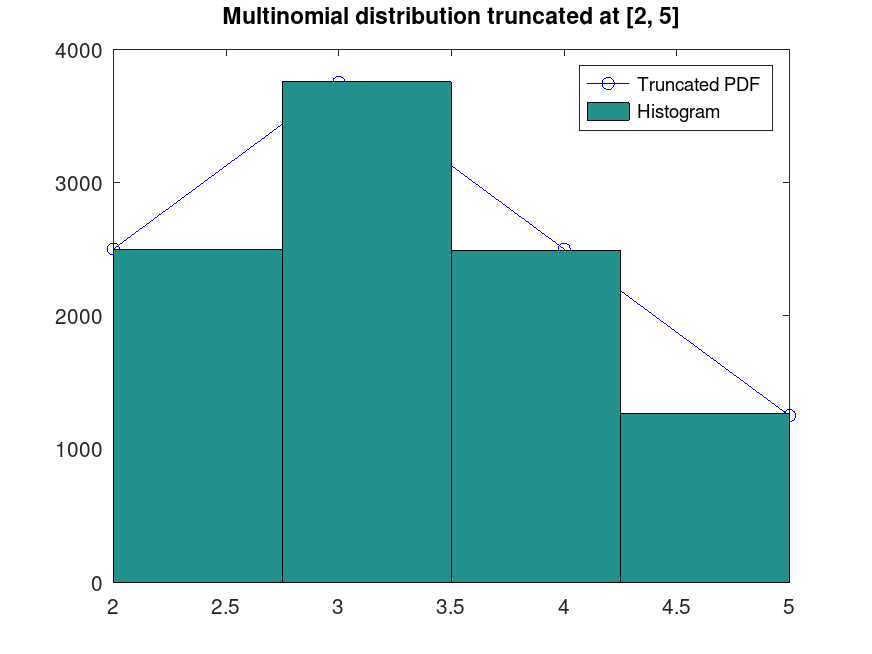

 ## Plot the PDF of a Multinomial distribution truncated at [2, 5] intervals.
 ## Generate 10000 random samples from this truncated distribution and
 ## superimpose a histogram.

 rand ("seed", 21);
 pd = MultinomialDistribution ([0.1, 0.2, 0.3, 0.2, 0.1, 0.1]);
 t = truncate (pd, 2, 5);
 data_all = random (pd, 20000, 1);
 data = data_all(data_all >= 2 & data_all <= 5);
 data = data(1:10000);

 ## Plot histogram and truncated PDF
 x = 2:5;
 y = pdf (t, x);
 plot (x, y * numel (data), "bo-")
 hold on
 hist (data, 4)
 hold off
 title ("Multinomial distribution truncated at [2, 5]")
 legend ("Truncated PDF", "Histogram")

 ## This demonstrates truncating a Multinomial distribution to a specific
 ## range of outcomes and visualizing the resulting distribution with random samples.

MultinomialDistribution: v = var (pd)

v = var (pd) computes the standard deviation of the probability distribution object, pd.

Example: 1


 ## Compute the variance for a Multinomial distribution
 pd = MultinomialDistribution ([0.1, 0.2, 0.3, 0.2, 0.1, 0.1]);
 var_value = var (pd)

 ## Use this to calculate the variance, which quantifies the spread of the
 ## outcome indices in the distribution.

var_value = 2.0100

Examples

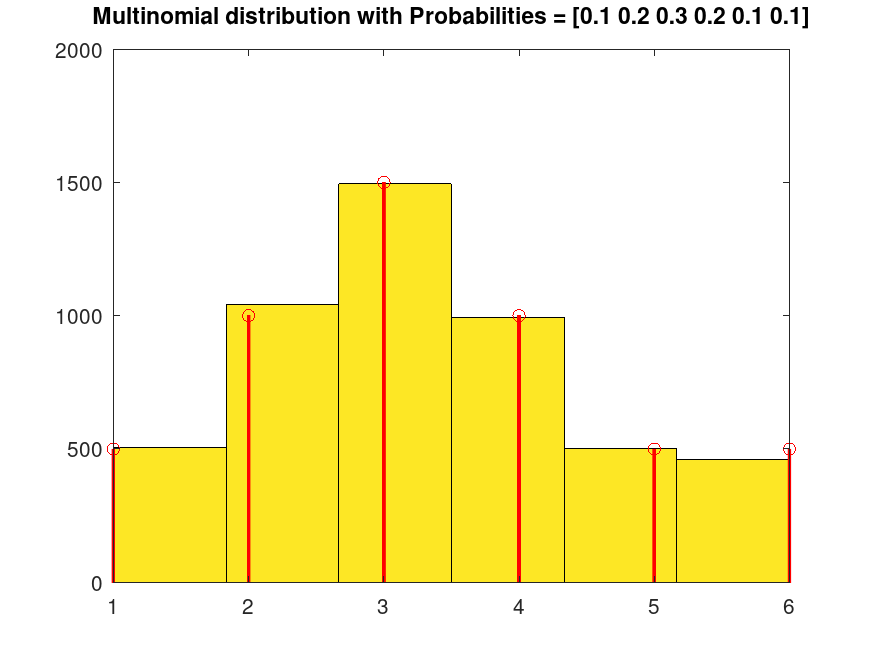

 probs = [0.1, 0.2, 0.3, 0.2, 0.1, 0.1];
 pd = makedist ("Multinomial", "Probabilities", probs);
 rand ("seed", 2);
 data = random (pd, 5000, 1);
 hist (data, length (probs));
 hold on
 x = 1:length (probs);
 y = pdf (pd, x) * 5000;
 stem (x, y, "r", "LineWidth", 2);
 hold off
 msg = "Multinomial distribution with Probabilities = [%s]";
 probs_str = num2str (probs, "%0.1f ");
 title (sprintf (msg, probs_str))

Categories &

Functions List

Clustering

Clustering

Classification Classes

Classification Classes

Clustering Classes

Clustering Classes

Regression Classes

Regression Classes

Data Manipulation

Data Manipulation

Descriptive Statistics

Descriptive Statistics

Distribution Classes

Distribution Classes

Distribution Fitting

Distribution Fitting

Distribution Functions

Distribution Functions

Distribution Statistics

Distribution Statistics

Distribution Wrappers

Distribution Wrappers

Experimental Design

Experimental Design

Machine Learning

Machine Learning

Model Fitting

Model Fitting

Hypothesis Testing

Hypothesis Testing

I/O

I/O

Plotting

Plotting

Regression

Regression

Transforms

Transforms

Class Definition: MultinomialDistribution

statistics: MultinomialDistribution

Properties

Probabilities

Example: 1

Example: 2

Example: 3

DistributionName

NumParameters

ParameterNames

ParameterDescription

ParameterValues

Truncation

IsTruncated

Methods

cdf

MultinomialDistribution: p = cdf (pd, x)

MultinomialDistribution: p = cdf (pd, x, "upper")

Example: 1

icdf

MultinomialDistribution: p = icdf (pd, p)

Example: 1

iqr

MultinomialDistribution: r = iqr (pd)

Example: 1

mean

MultinomialDistribution: m = mean (pd)

Example: 1

median

MultinomialDistribution: m = median (pd)

Example: 1

pdf

MultinomialDistribution: y = pdf (pd, x)

Example: 1

plot

MultinomialDistribution: plot (pd)

MultinomialDistribution: plot (pd, Name, Value)

MultinomialDistribution: h = plot (…)

Example: 1

Example: 2

Class Definition: `MultinomialDistribution`

`Probabilities`

`DistributionName`

`NumParameters`

`ParameterNames`

`ParameterDescription`

`ParameterValues`

`Truncation`

`IsTruncated`

`cdf`

`MultinomialDistribution: p = cdf (pd, x)`

`MultinomialDistribution: p = cdf (pd, x, "upper")`

`icdf`

`MultinomialDistribution: p = icdf (pd, p)`

`iqr`

`MultinomialDistribution: r = iqr (pd)`

`mean`

`MultinomialDistribution: m = mean (pd)`

`median`

`MultinomialDistribution: m = median (pd)`

`pdf`

`MultinomialDistribution: y = pdf (pd, x)`

`plot`

`MultinomialDistribution: plot (pd)`

`MultinomialDistribution: plot (pd, Name, Value)`

`MultinomialDistribution: h = plot (…)`

`random`

`MultinomialDistribution: y = random (pd)`

`MultinomialDistribution: y = random (pd, rows)`

`MultinomialDistribution: y = random (pd, rows, cols, …)`

`MultinomialDistribution: y = random (pd, [sz])`

`std`

`MultinomialDistribution: s = std (pd)`

`truncate`

`MultinomialDistribution: t = truncate (pd, lower, upper)`

`var`

`MultinomialDistribution: v = var (pd)`
