Class Definition: LogisticDistribution

statistics: LogisticDistribution

Logistic probability distribution object.

A LogisticDistribution object consists of parameters, a model description, and sample data for a logistic probability distribution.

The logistic distribution is a continuous probability distribution, which is commonly used in logistic regression and feedforward neural networks. It is defined by location parameter mu and scale parameter sigma.

There are several ways to create a LogisticDistribution object.

  • Fit a distribution to data using the fitdist function.
  • Create a distribution with fixed parameter values using the makedist function.
  • Use the constructor LogisticDistribution (mu, sigma) to create a logistic distribution with fixed parameter values mu and sigma.
  • Use the static method LogisticDistribution.fit (x, alpha, censor, freq, options) to fit a distribution to the data in x using the same input arguments as the logifit function.

It is highly recommended to use fitdist and makedist functions to create probability distribution objects, instead of the class constructor or the aforementioned static method.

Further information about the logistic distribution can be found at https://en.wikipedia.org/wiki/Logistic_distribution

See also: fitdist, makedist, logicdf, logiinv, logipdf, logirnd, logifit, logilike, logistat

Source Code: LogisticDistribution

Properties

A scalar value characterizing the location of the logistic distribution. You can access the mu property using dot name assignment.

Example: 1



 ## Create a Logistic distribution with default parameters
 pd = makedist ("Logistic")

 ## Query parameter 'mu' (location parameter)
 pd.mu

 ## Set parameter 'mu'
 pd.mu = 2

 ## Use this to initialize or modify the location parameter of a Logistic
 ## distribution. The location parameter must be a finite real scalar and
 ## represents the center of the distribution, often used in regression models.

pd =
  LogisticDistribution

  logistic distribution
       mu = 0
    sigma = 1

ans = 0
pd =
  LogisticDistribution

  logistic distribution
       mu = 2
    sigma = 1



Example: 2



 ## Create a Logistic distribution object by calling its constructor
 pd = LogisticDistribution (1.5, 0.5)

 ## Query parameter 'mu'
 pd.mu

 ## This demonstrates direct construction with a specific location parameter,
 ## useful for modeling data centered around a known value, such as in logistic regression.

pd =
  LogisticDistribution

  logistic distribution
       mu = 1.5
    sigma = 0.5

ans = 1.5000


A positive scalar value characterizing the scale of the logistic distribution. You can access the sigma property using dot name assignment.

Example: 1



 ## Create a Logistic distribution with default parameters
 pd = makedist ("Logistic")

 ## Query parameter 'sigma' (scale parameter)
 pd.sigma

 ## Set parameter 'sigma'
 pd.sigma = 0.8

 ## Use this to initialize or modify the scale parameter in a Logistic
 ## distribution. The scale parameter must be a positive real scalar and
 ## controls the spread of the distribution.

pd =
  LogisticDistribution

  logistic distribution
       mu = 0
    sigma = 1

ans = 1
pd =
  LogisticDistribution

  logistic distribution
       mu =   0
    sigma = 0.8



Example: 2



 ## Create a Logistic distribution object by calling its constructor
 pd = LogisticDistribution (1.5, 0.5)

 ## Query parameter 'sigma'
 pd.sigma

 ## This shows how to set the scale parameter directly via the constructor,
 ## ideal for modeling data with specific variability, such as in neural network outputs.

pd =
  LogisticDistribution

  logistic distribution
       mu = 1.5
    sigma = 0.5

ans = 0.5000


A character vector specifying the name of the probability distribution object. This property is read-only.

A scalar integer value specifying the number of parameters characterizing the probability distribution. This property is read-only.

A 2×1 cell array of character vectors with each element containing the name of a distribution parameter. This property is read-only.

A 2×1 cell array of character vectors with each element containing a short description of a distribution parameter. This property is read-only.

A 2×1 numeric vector containing the values of the distribution parameters. This property is read-only. You can change the distribution parameters by assigning new values to the mu and sigma properties.

A 2×2 numeric matrix containing the variance-covariance of the parameter estimates. Diagonal elements contain the variance of each estimated parameter, and non-diagonal elements contain the covariance between the parameter estimates. The covariance matrix is only meaningful when the distribution was fitted to data. If the distribution object was created with fixed parameters, or a parameter of a fitted distribution is modified, then all elements of the variance-covariance are zero. This property is read-only.

A 1×2 logical vector specifying which parameters are fixed and which are estimated. true values correspond to fixed parameters, false values correspond to parameter estimates. This property is read-only.

A 1×2 numeric vector specifying the truncation interval for the probability distribution. First element contains the lower boundary, second element contains the upper boundary. This property is read-only. You can only truncate a probability distribution with the truncate method.

A logical scalar value specifying whether a probability distribution is truncated or not. This property is read-only.

A scalar structure containing the following fields:

  • data: a numeric vector containing the data used for distribution fitting.
  • cens: a numeric vector of logical values indicating censoring information corresponding to the elements of the data used for distribution fitting. If no censoring vector was used for distribution fitting, then this field defaults to an empty array.
  • freq: a numeric vector of non-negative integer values containing the frequency information corresponding to the elements of the data used for distribution fitting. If no frequency vector was used for distribution fitting, then this field defaults to an empty array.

Methods

LogisticDistribution: p = cdf (pd, x)
LogisticDistribution: p = cdf (pd, x, "upper")

p = cdf (pd, x) computes the CDF of the probability distribution object, pd, evaluated at the values in x.

p = cdf (…, "upper") returns the complement of the CDF of the probability distribution object, pd, evaluated at the values in x.

Example: 1

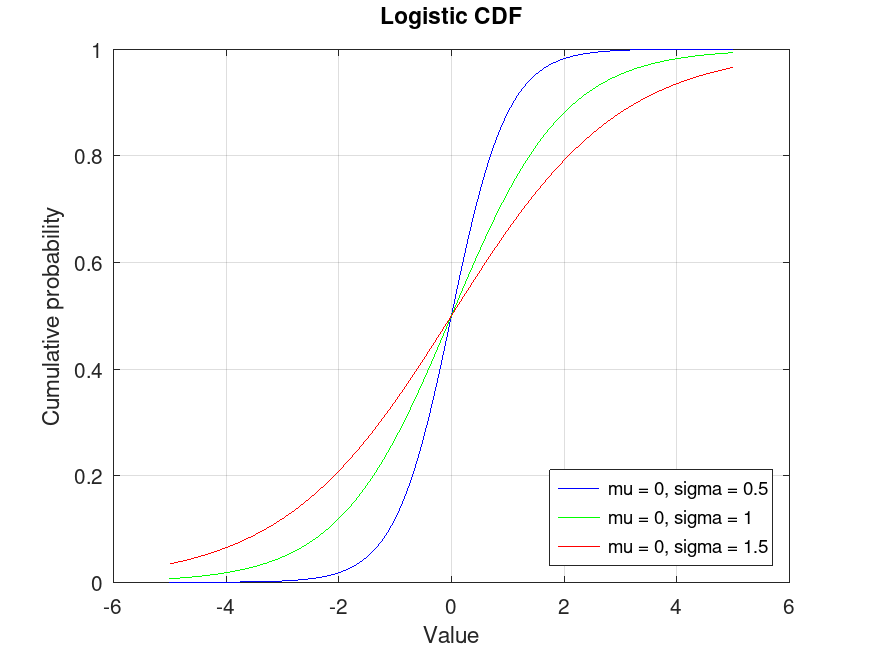

 ## Plot various CDFs from the Logistic distribution
 x = -5:0.01:5;
 pd1 = makedist ("Logistic", "mu", 0, "sigma", 0.5);
 pd2 = makedist ("Logistic", "mu", 0, "sigma", 1);
 pd3 = makedist ("Logistic", "mu", 0, "sigma", 1.5);
 p1 = cdf (pd1, x);
 p2 = cdf (pd2, x);
 p3 = cdf (pd3, x);
 plot (x, p1, "-b", x, p2, "-g", x, p3, "-r")
 grid on
 legend ({"mu = 0, sigma = 0.5", "mu = 0, sigma = 1", "mu = 0, sigma = 1.5"}, ...
         "location", "southeast")
 title ("Logistic CDF")
 xlabel ("Value")
 ylabel ("Cumulative probability")

 ## Use this to compute and visualize the cumulative distribution function
 ## for different Logistic distributions, showing how probability accumulates
 ## over values, useful in regression or classification tasks.


plotted figure

LogisticDistribution: x = icdf (pd, p)

x = icdf (pd, p) computes the quantile (the inverse of the CDF) of the probability distribution object, pd, evaluated at the values in p.

Example: 1

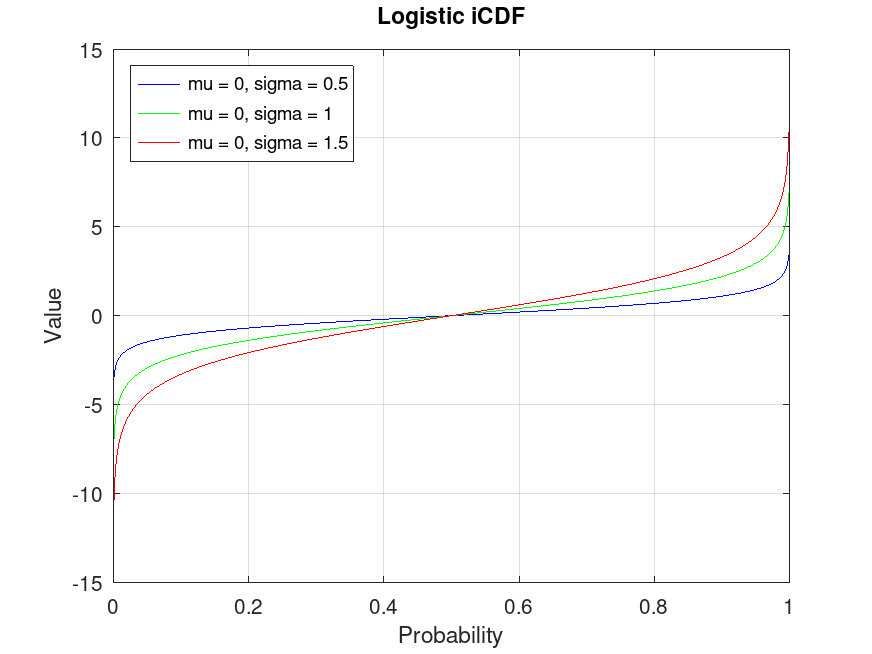

 ## Plot various iCDFs from the Logistic distribution
 p = 0.001:0.001:0.999;
 pd1 = makedist ("Logistic", "mu", 0, "sigma", 0.5);
 pd2 = makedist ("Logistic", "mu", 0, "sigma", 1);
 pd3 = makedist ("Logistic", "mu", 0, "sigma", 1.5);
 x1 = icdf (pd1, p);
 x2 = icdf (pd2, p);
 x3 = icdf (pd3, p);
 plot (p, x1, "-b", p, x2, "-g", p, x3, "-r")
 grid on
 legend ({"mu = 0, sigma = 0.5", "mu = 0, sigma = 1", "mu = 0, sigma = 1.5"}, ...
         "location", "northwest")
 title ("Logistic iCDF")
 xlabel ("Probability")
 ylabel ("Value")

 ## This demonstrates the inverse CDF (quantiles) for Logistic distributions,
 ## useful for finding values corresponding to specific probabilities, such as
 ## thresholds in logistic regression.


plotted figure

LogisticDistribution: r = iqr (pd)

r = iqr (pd) computes the interquartile range of the probability distribution object, pd.

Example: 1



 ## Compute the interquartile range for a Logistic distribution
 pd = makedist ("Logistic", "mu", 0, "sigma", 1)
 iqr_value = iqr (pd)

 ## Use this to calculate the interquartile range, which measures the spread
 ## of the middle 50% of the distribution, useful for understanding variability
 ## in logistic data.

pd =
  LogisticDistribution

  logistic distribution
       mu = 0
    sigma = 1

iqr_value = 2.1972

LogisticDistribution: m = mean (pd)

m = mean (pd) computes the mean of the probability distribution object, pd.

Example: 1



 ## Compute the mean for different Logistic distributions
 pd1 = makedist ("Logistic", "mu", 0, "sigma", 0.5);
 pd2 = makedist ("Logistic", "mu", 0, "sigma", 1);
 mean1 = mean (pd1)
 mean2 = mean (pd2)

 ## This shows how to compute the expected value for Logistic distributions
 ## with different scale parameters, representing the central tendency.

mean1 = 0
mean2 = 0

LogisticDistribution: m = median (pd)

m = median (pd) computes the median of the probability distribution object, pd.

Example: 1



 ## Compute the median for different Logistic distributions
 pd1 = makedist ("Logistic", "mu", 0, "sigma", 0.5);
 pd2 = makedist ("Logistic", "mu", 0, "sigma", 1);
 median1 = median (pd1)
 median2 = median (pd2)

 ## Use this to find the median value, which splits the distribution into
 ## two equal probability halves, useful for robust central tendency measures.

median1 = 0
median2 = 0

LogisticDistribution: nlogL = negloglik (pd)

nlogL = negloglik (pd) computes the negative loglikelihood of the probability distribution object, pd.

Example: 1



 ## Compute the negative loglikelihood for a fitted Logistic distribution
 pd = makedist ("Logistic", "mu", 0, "sigma", 1)
 rand ("seed", 21);
 data = random (pd, 100, 1);
 pd_fitted = fitdist (data, "Logistic")
 nlogL = negloglik (pd_fitted)

 ## This is useful for assessing the fit of a Logistic distribution to data,
 ## lower values indicate a better fit, often used in model evaluation.

pd =
  LogisticDistribution

  logistic distribution
       mu = 0
    sigma = 1

pd_fitted =
  LogisticDistribution

  logistic distribution
       mu = -0.0405294   [-0.361246, 0.280187]
    sigma =   0.960042   [0.812844, 1.1339]

nlogL = -198.18

LogisticDistribution: ci = paramci (pd)
LogisticDistribution: ci = paramci (pd, Name, Value)

ci = paramci (pd) computes the lower and upper boundaries of the 95% confidence interval for each parameter of the probability distribution object, pd.

ci = paramci (pd, Name, Value) computes the confidence intervals with additional options specified by Name-Value pair arguments listed below.

NameValue
"Alpha"A scalar value in the range (0,1) specifying the significance level for the confidence interval. The default value 0.05 corresponds to a 95% confidence interval.
"Parameter"A character vector or a cell array of character vectors specifying the parameter names for which to compute confidence intervals. By default, paramci computes confidence intervals for all distribution parameters.

paramci is meaningful only when pd is fitted to data, otherwise an empty array, [], is returned.

Example: 1



 ## Compute confidence intervals for parameters of a fitted Logistic distribution
 pd = makedist ("Logistic", "mu", 0, "sigma", 1)
 rand ("seed", 21);
 data = random (pd, 1000, 1);
 pd_fitted = fitdist (data, "Logistic")
 ci = paramci (pd_fitted, "Alpha", 0.05)

 ## Use this to obtain confidence intervals for the estimated parameters (mu
 ## and sigma), providing a range of plausible values given the data.

pd =
  LogisticDistribution

  logistic distribution
       mu = 0
    sigma = 1

pd_fitted =
  LogisticDistribution

  logistic distribution
       mu = 0.0441605   [-0.0616361, 0.149957]
    sigma =  0.988266   [0.938148, 1.04106]

ci =

  -0.061636   0.938148
   0.149957   1.041062


LogisticDistribution: y = pdf (pd, x)

y = pdf (pd, x) computes the PDF of the probability distribution object, pd, evaluated at the values in x.

Example: 1

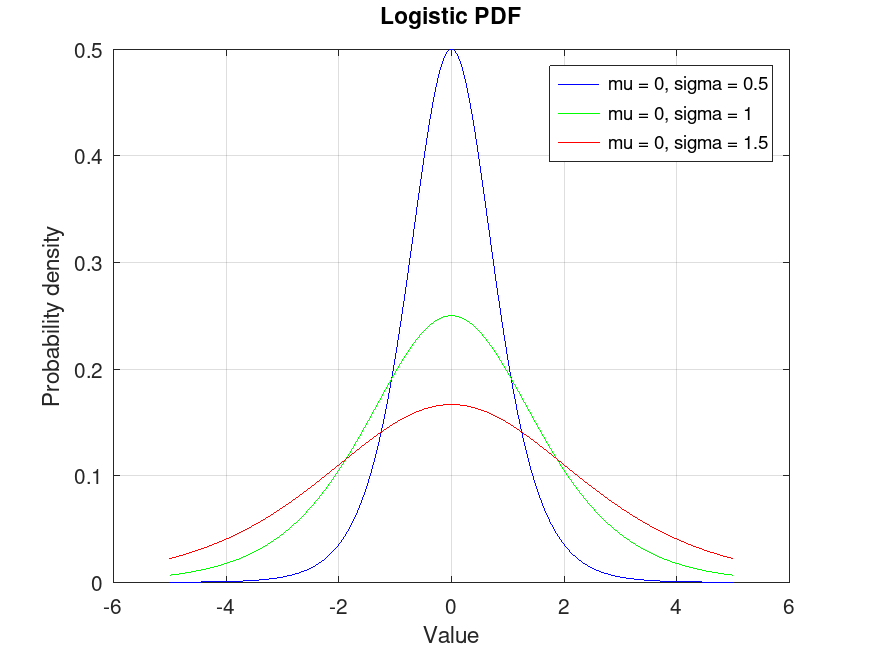

 ## Plot various PDFs from the Logistic distribution
 x = -5:0.01:5;
 pd1 = makedist ("Logistic", "mu", 0, "sigma", 0.5);
 pd2 = makedist ("Logistic", "mu", 0, "sigma", 1);
 pd3 = makedist ("Logistic", "mu", 0, "sigma", 1.5);
 y1 = pdf (pd1, x);
 y2 = pdf (pd2, x);
 y3 = pdf (pd3, x);
 plot (x, y1, "-b", x, y2, "-g", x, y3, "-r")
 grid on
 legend ({"mu = 0, sigma = 0.5", "mu = 0, sigma = 1", "mu = 0, sigma = 1.5"}, ...
         "location", "northeast")
 title ("Logistic PDF")
 xlabel ("Value")
 ylabel ("Probability density")

 ## This visualizes the probability density function for Logistic distributions,
 ## showing the likelihood of different values, useful for understanding data density.


plotted figure

LogisticDistribution: plot (pd)
LogisticDistribution: plot (pd, Name, Value)
LogisticDistribution: h = plot (…)

plot (pd) plots a probability density function (PDF) of the probability distribution object pd. If pd contains data, which have been fitted by fitdist, the PDF is superimposed over a histogram of the data.

plot (pd, Name, Value) specifies additional options with the Name-Value pair arguments listed below.

NameValue
"PlotType"A character vector specifying the plot type. "pdf" plots the probability density function (PDF). When pd is fit to data, the PDF is superimposed on a histogram of the data. "cdf" plots the cumulative density function (CDF). When pd is fit to data, the CDF is superimposed over an empirical CDF. "probability" plots a probability plot using a CDF of the data and a CDF of the fitted probability distribution. This option is available only when pd is fitted to data.
"Discrete"A logical scalar to specify whether to plot the PDF or CDF of a discrete distribution object as a line plot or a stem plot, by specifying false or true, respectively. By default, it is true for discrete distributions and false for continuous distributions. When pd is a continuous distribution object, option is ignored.
"Parent"An axes graphics object for plot. If not specified, the plot function plots into the current axes or creates a new axes object if one does not exist.

h = plot (…) returns a graphics handle to the plotted objects.

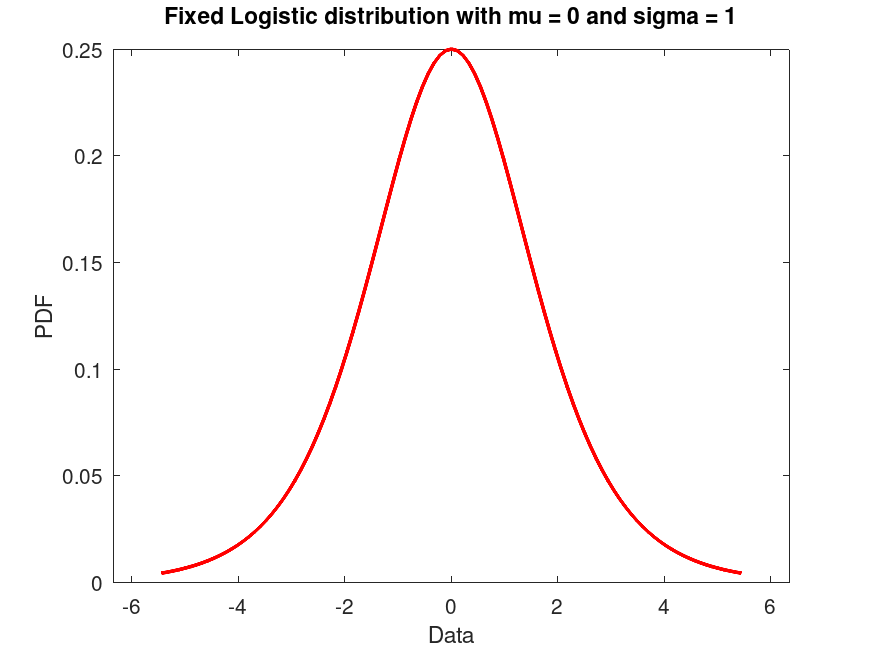

Example: 1



 ## Create a Logistic distribution with fixed parameters mu = 0 and sigma = 1
 ## and plot its PDF.
 pd = makedist ("Logistic", "mu", 0, "sigma", 1)
 plot (pd)
 title ("Fixed Logistic distribution with mu = 0 and sigma = 1")

 ## Use this to visualize the PDF of a Logistic distribution with fixed parameters.

pd =
  LogisticDistribution

  logistic distribution
       mu = 0
    sigma = 1


plotted figure

Example: 2

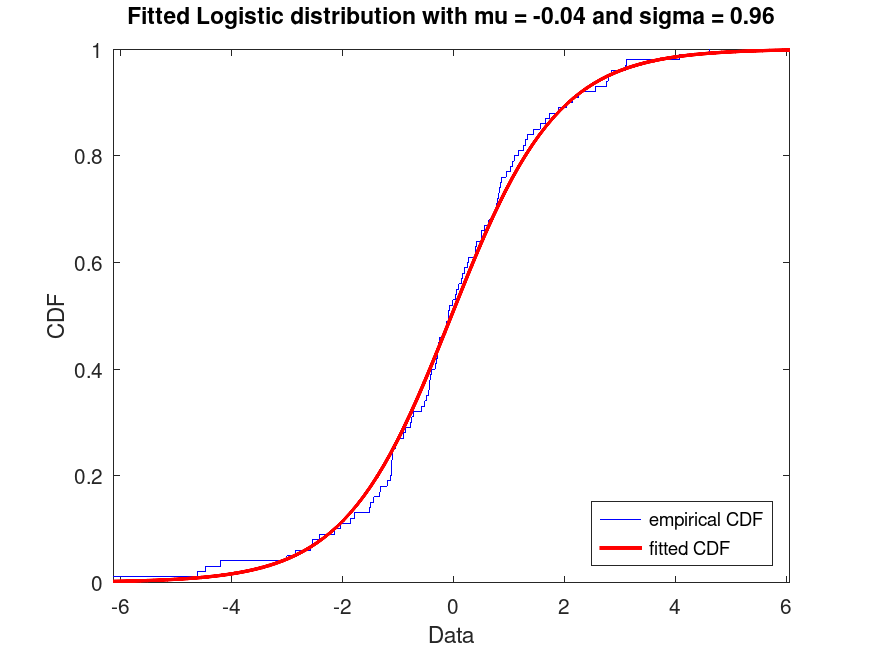

 ## Generate a data set of 100 random samples from a Logistic distribution
 ## with parameters mu = 0 and sigma = 1. Fit a Logistic distribution to this
 ## data and plot its CDF superimposed over an empirical CDF.
 pd_fixed = makedist ("Logistic", "mu", 0, "sigma", 1)
 rand ("seed", 21);
 data = random (pd_fixed, 100, 1);
 pd_fitted = fitdist (data, "Logistic")
 plot (pd_fitted, "PlotType", "cdf")
 txt = "Fitted Logistic distribution with mu = %0.2f and sigma = %0.2f";
 title (sprintf (txt, pd_fitted.mu, pd_fitted.sigma))
 legend ({"empirical CDF", "fitted CDF"}, "location", "southeast")

 ## Use this to visualize the fitted CDF compared to the empirical CDF of the
 ## data, useful for assessing model fit.

pd_fixed =
  LogisticDistribution

  logistic distribution
       mu = 0
    sigma = 1

pd_fitted =
  LogisticDistribution

  logistic distribution
       mu = -0.0405294   [-0.361246, 0.280187]
    sigma =   0.960042   [0.812844, 1.1339]


plotted figure

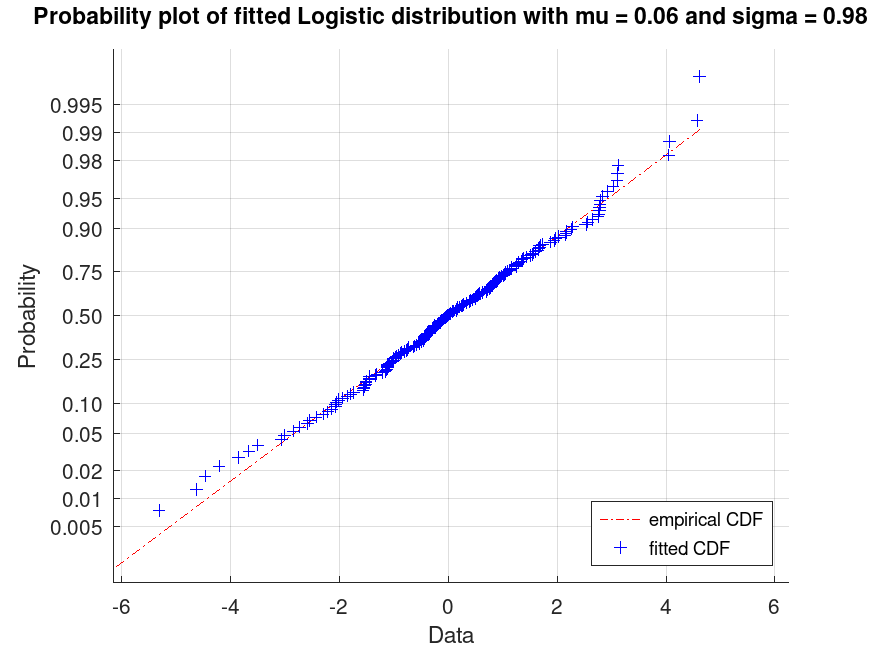

Example: 3



 ## Generate a data set of 200 random samples from a Logistic distribution
 ## with parameters mu = 0 and sigma = 1. Display a probability plot for the
 ## Logistic distribution fit to the data.
 pd_fixed = makedist ("Logistic", "mu", 0, "sigma", 1)
 rand ("seed", 21);
 data = random (pd_fixed, 200, 1);
 pd_fitted = fitdist (data, "Logistic")
 plot (pd_fitted, "PlotType", "probability")
 txt = strcat ("Probability plot of fitted Logistic distribution", ...
               " with mu = %0.2f and sigma = %0.2f");
 title (sprintf (txt, pd_fitted.mu, pd_fitted.sigma))
 legend ({"empirical CDF", "fitted CDF"}, "location", "southeast")

 ## This creates a probability plot to compare the fitted distribution to the
 ## data, useful for checking if the Logistic model is appropriate.

pd_fixed =
  LogisticDistribution

  logistic distribution
       mu = 0
    sigma = 1

pd_fitted =
  LogisticDistribution

  logistic distribution
       mu = 0.057369   [-0.176277, 0.291015]
    sigma = 0.978267   [0.870755, 1.09905]


plotted figure

LogisticDistribution: [nlogL, param] = proflik (pd, pnum)
LogisticDistribution: [nlogL, param] = proflik (pd, pnum, "Display", display)
LogisticDistribution: [nlogL, param] = proflik (pd, pnum, setparam)
LogisticDistribution: [nlogL, param] = proflik (pd, pnum, setparam, "Display", display)

[nlogL, param] = proflik (pd, pnum) returns a vector nlogL of negative loglikelihood values and a vector param of corresponding parameter values for the parameter in the position indicated by pnum. By default, proflik uses the lower and upper bounds of the 95% confidence interval and computes 100 equispaced values for the selected parameter. pd must be fitted to data.

[nlogL, param] = proflik (pd, pnum, "Display", "on") also plots the profile likelihood against the default range of the selected parameter.

[nlogL, param] = proflik (pd, pnum, setparam) defines a user-defined range of the selected parameter.

[nlogL, param] = proflik (pd, pnum, setparam, "Display", "on") also plots the profile likelihood against the user-defined range of the selected parameter.

For the logistic distribution, pnum = 1 selects the parameter mu and pnum = 2 selects the parameter sigma.

When opted to display the profile likelihood plot, proflik also plots the baseline loglikelihood computed at the lower bound of the 95% confidence interval and estimated maximum likelihood. The latter might not be observable if it is outside of the used-defined range of parameter values.

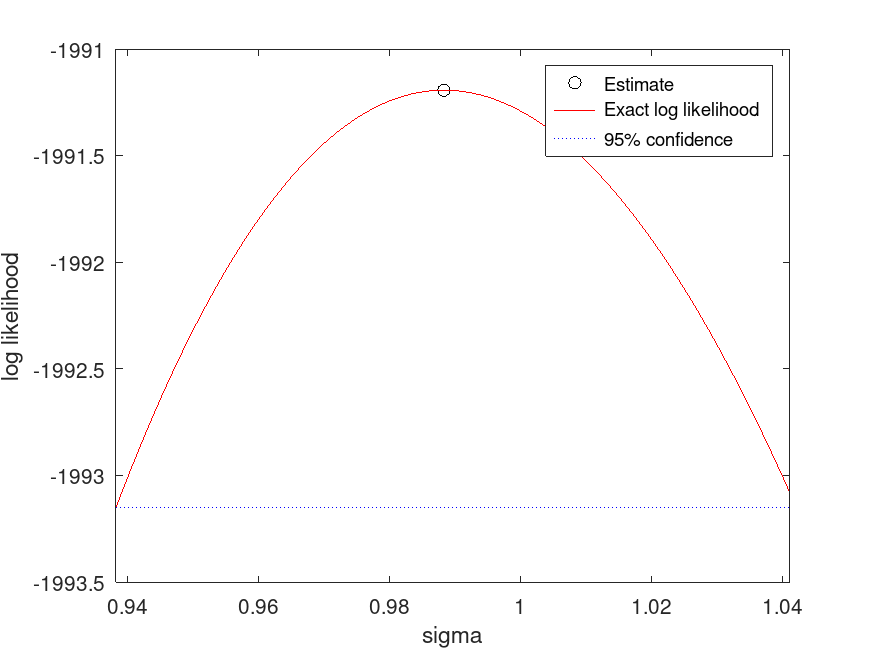

Example: 1



 ## Compute and plot the profile likelihood for the scale parameter of a fitted
 ## Logistic distribution
 pd = makedist ("Logistic", "mu", 0, "sigma", 1)
 rand ("seed", 21);
 data = random (pd, 1000, 1);
 pd_fitted = fitdist (data, "Logistic")
 [nlogL, param] = proflik (pd_fitted, 2, "Display", "on");

 ## Use this to analyze the profile likelihood of the scale parameter (sigma),
 ## helping to understand the uncertainty in parameter estimates.

pd =
  LogisticDistribution

  logistic distribution
       mu = 0
    sigma = 1

pd_fitted =
  LogisticDistribution

  logistic distribution
       mu = 0.0441605   [-0.0616361, 0.149957]
    sigma =  0.988266   [0.938148, 1.04106]


plotted figure

LogisticDistribution: r = random (pd)
LogisticDistribution: r = random (pd, rows)
LogisticDistribution: r = random (pd, rows, cols, …)
LogisticDistribution: r = random (pd, [sz])

r = random (pd) returns a random number from the distribution object pd.

When called with a single size argument, bisarnd returns a square matrix with the dimension specified. When called with more than one scalar argument, the first two arguments are taken as the number of rows and columns and any further arguments specify additional matrix dimensions. The size may also be specified with a row vector of dimensions, sz.

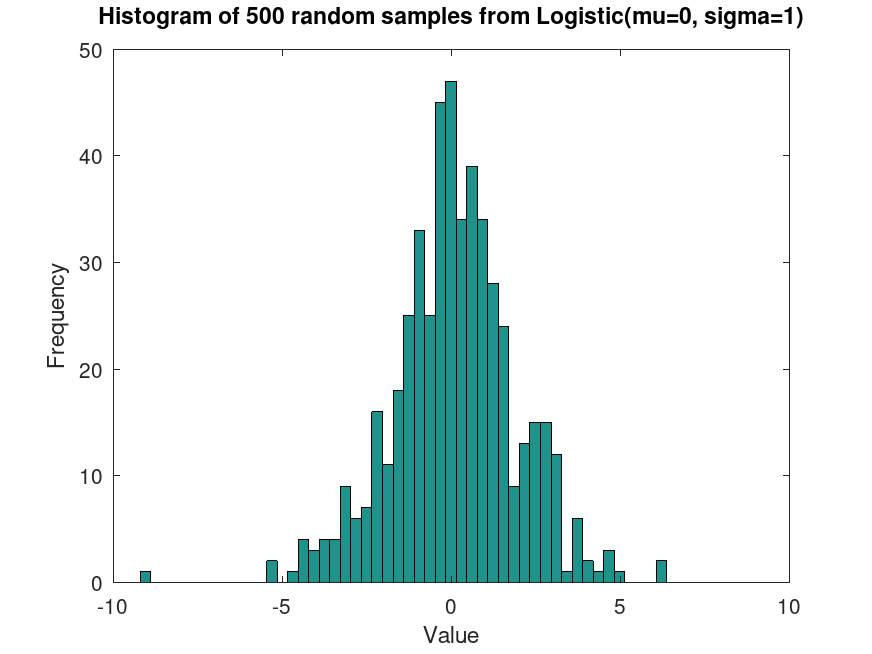

Example: 1



 ## Generate random samples from a Logistic distribution
 pd = makedist ("Logistic", "mu", 0, "sigma", 1)
 rand ("seed", 21);
 samples = random (pd, 500, 1);
 hist (samples, 50)
 title ("Histogram of 500 random samples from Logistic(mu=0, sigma=1)")
 xlabel ("Value")
 ylabel ("Frequency")

 ## This generates random samples from a Logistic distribution, useful for
 ## simulating data for logistic regression or neural network modeling.

pd =
  LogisticDistribution

  logistic distribution
       mu = 0
    sigma = 1


plotted figure

LogisticDistribution: s = std (pd)

s = std (pd) computes the standard deviation of the probability distribution object, pd.

Example: 1



 ## Compute the standard deviation for a Logistic distribution
 pd = makedist ("Logistic", "mu", 0, "sigma", 1)
 std_value = std (pd)

 ## Use this to calculate the standard deviation, which measures the variability
 ## in the distribution, useful for understanding data spread.

pd =
  LogisticDistribution

  logistic distribution
       mu = 0
    sigma = 1

std_value = 1.8138

LogisticDistribution: t = truncate (pd, lower, upper)

t = truncate (pd, lower, upper) returns a probability distribution t, which is the probability distribution pd truncated to the specified interval with lower limit, lower, and upper limit, upper. If pd is fitted to data with fitdist, the returned probability distribution t is not fitted, does not contain any data or estimated values, and it is as it has been created with the makedist function, but it includes the truncation interval.

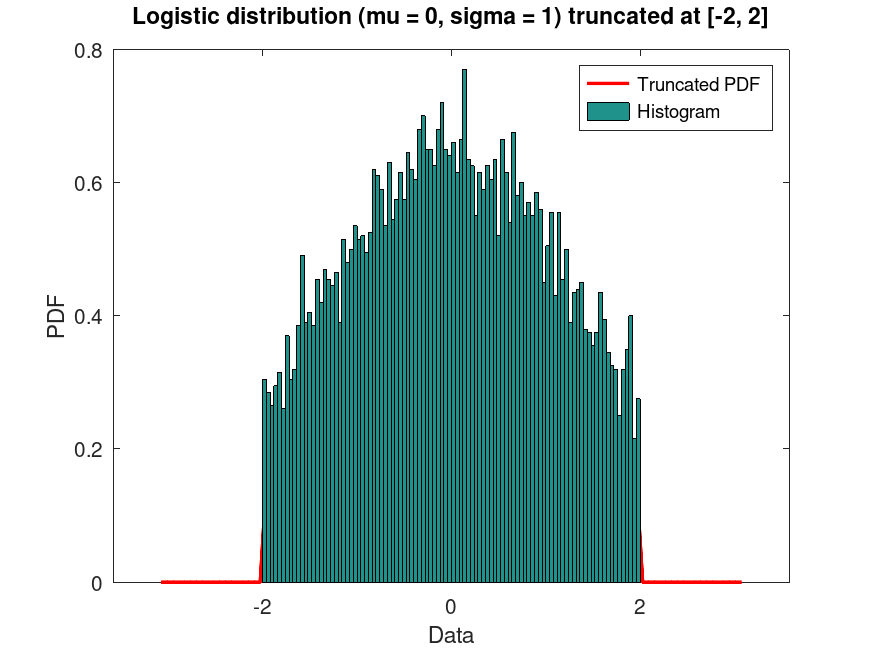

Example: 1



 ## Plot the PDF of a Logistic distribution, with parameters mu = 0 and sigma = 1,
 ## truncated at [-2, 2] intervals. Generate 10000 random samples from this
 ## truncated distribution and superimpose a histogram scaled accordingly.
 pd = makedist ("Logistic", "mu", 0, "sigma", 1)
 t = truncate (pd, -2, 2)
 rand ("seed", 21);
 data = random (t, 10000, 1);
 plot (t)
 hold on
 hist (data, 100, 50)
 hold off
 title ("Logistic distribution (mu = 0, sigma = 1) truncated at [-2, 2]")
 legend ("Truncated PDF", "Histogram")

 ## This demonstrates truncating a Logistic distribution to a specific range
 ## and visualizing the resulting distribution with random samples.

pd =
  LogisticDistribution

  logistic distribution
       mu = 0
    sigma = 1

t =
  LogisticDistribution

  logistic distribution
       mu = 0
    sigma = 1
  Truncated to the interval [-2, 2]


plotted figure

LogisticDistribution: v = var (pd)

v = var (pd) computes the variance of the probability distribution object, pd.

Example: 1



 ## Compute the variance for a Logistic distribution
 pd = makedist ("Logistic", "mu", 0, "sigma", 1)
 var_value = var (pd)

 ## Use this to calculate the variance, which quantifies the spread of the
 ## distribution, useful for statistical analysis.

pd =
  LogisticDistribution

  logistic distribution
       mu = 0
    sigma = 1

var_value = 3.2899
