Function Reference: nctpdf

statistics: y = nctpdf (x, df, mu)

Noncentral t-probability density function (PDF).

For each element of x, compute the probability density function (PDF) of the noncentral t-distribution with df degrees of freedom and noncentrality parameter mu. The size of y is the common size of x, df, and mu. A scalar input functions as a constant matrix of the same size as the other inputs.

Further information about the noncentral t-distribution can be found at https://en.wikipedia.org/wiki/Noncentral_t-distribution

See also: nctcdf, nctinv, nctrnd, nctstat, tpdf

Source Code: nctpdf

Example: 1

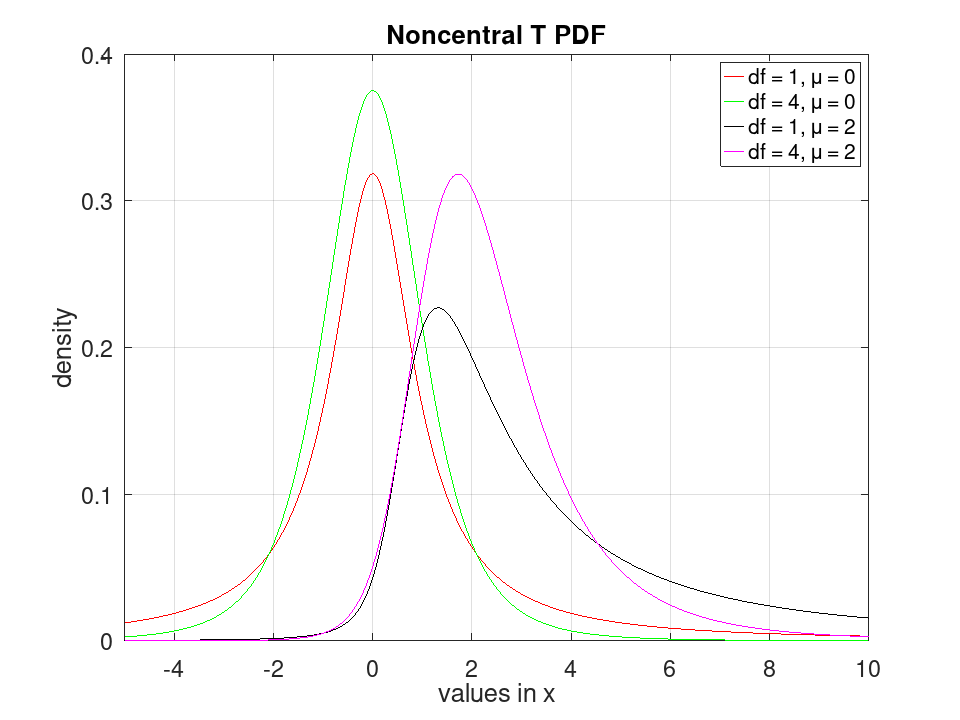

 ## Plot various PDFs from the noncentral T distribution
 x = -5:0.01:10;
 y1 = nctpdf (x, 1, 0);
 y2 = nctpdf (x, 4, 0);
 y3 = nctpdf (x, 1, 2);
 y4 = nctpdf (x, 4, 2);
 plot (x, y1, "-r", x, y2, "-g", x, y3, "-k", x, y4, "-m")
 grid on
 xlim ([-5, 10])
 ylim ([0, 0.4])
 legend ({"df = 1, μ = 0", "df = 4, μ = 0", ...
          "df = 1, μ = 2", "df = 4, μ = 2"}, "location", "northeast")
 title ("Noncentral T PDF")
 xlabel ("values in x")
 ylabel ("density")
plotted figure

Example: 2

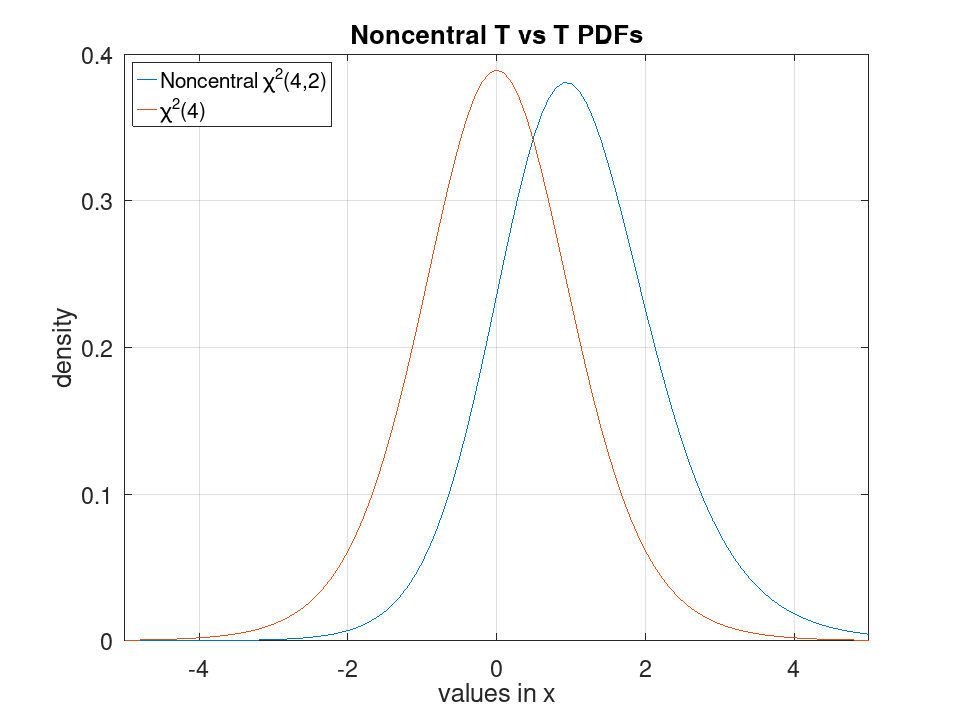

 ## Compare the noncentral T PDF with MU = 1 to the T PDF
 ## with the same number of degrees of freedom (10).

 x = -5:0.1:5;
 y1 = nctpdf (x, 10, 1);
 y2 = tpdf (x, 10);
 plot (x, y1, "-", x, y2, "-");
 grid on
 xlim ([-5, 5])
 ylim ([0, 0.4])
 legend ({"Noncentral χ^2(4,2)", "χ^2(4)"}, "location", "northwest")
 title ("Noncentral T vs T PDFs")
 xlabel ("values in x")
 ylabel ("density")
plotted figure
