Function Reference: gppdf

statistics: y = gppdf (x, k, sigma, theta)

Generalized Pareto probability density function (PDF).

For each element of x, compute the probability density function (PDF) of the generalized Pareto distribution with shape parameter k, scale parameter sigma, and location parameter theta. The size of y is the common size of p, k, sigma, and theta. A scalar input functions as a constant matrix of the same size as the other inputs.

When k = 0 and theta = 0, the Generalized Pareto is equivalent to the exponential distribution. When k > 0 and theta = k / k the Generalized Pareto is equivalent to the Pareto distribution. The mean of the Generalized Pareto is not finite when k >= 1 and the variance is not finite when k >= 1/2. When k >= 0, the Generalized Pareto has positive density for x > theta, or, when theta < 0, for 0 <= (x - theta) / sigma <= -1 / k.

Further information about the generalized Pareto distribution can be found at https://en.wikipedia.org/wiki/Generalized_Pareto_distribution

Input arguments must be double or single; integer, logical, and character arrays are rejected. MATLAB accepts a character array and evaluates it at the character codes, which Octave deliberately does not, since a character array is an integer type and integers are refused too.

With a negative shape parameter the support is the closed interval [theta, theta - sigma/k], and the density at its upper endpoint follows the limit of the density there: 0 for -1 < k < 0, 1/sigma at k = -1, and unbounded for k < -1. MATLAB returns 0 at that endpoint whatever the shape, which contradicts its own unifpdf: the generalized Pareto with k = -1 is the uniform distribution on [theta, theta + sigma], for which MATLAB’s unifpdf returns 1/sigma at the same point. This implementation returns the limit, and so agrees with unifpdf.

See also: gpcdf, gpinv, gprnd, gpfit, gplike, gpstat

Source Code: gppdf

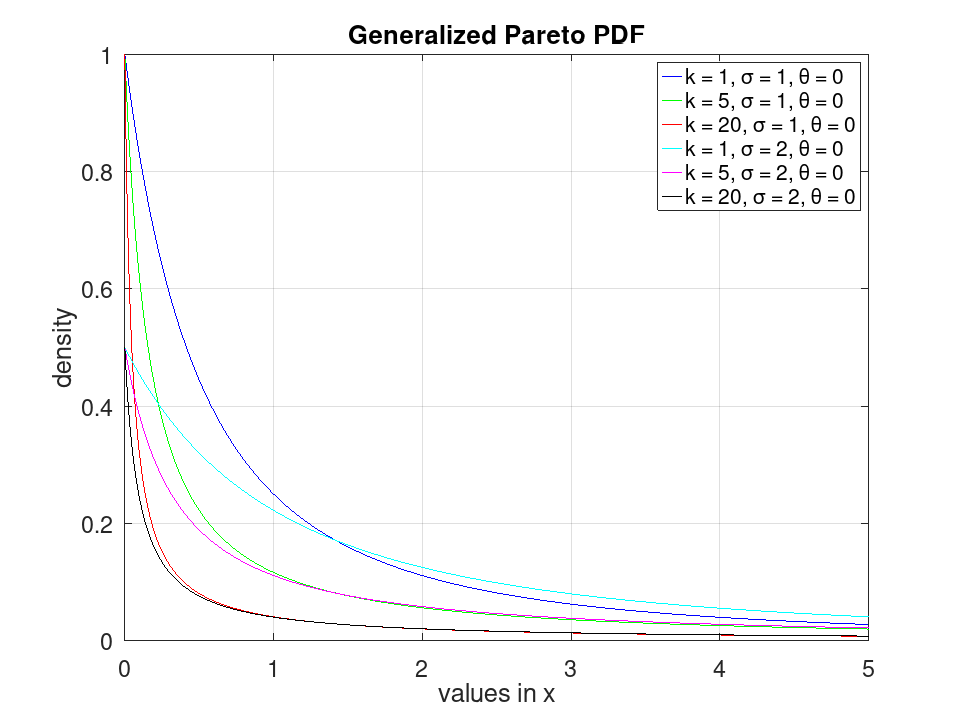

Plot various PDFs from the generalized Pareto distribution

 x = 0:0.001:5;
 y1 = gppdf (x, 1, 1, 0);
 y2 = gppdf (x, 5, 1, 0);
 y3 = gppdf (x, 20, 1, 0);
 y4 = gppdf (x, 1, 2, 0);
 y5 = gppdf (x, 5, 2, 0);
 y6 = gppdf (x, 20, 2, 0);
 plot (x, y1, '-b', x, y2, '-g', x, y3, '-r', ...
       x, y4, '-c', x, y5, '-m', x, y6, '-k')
 grid on
 xlim ([0, 5])
 ylim ([0, 1])
 legend ({'k = 1, σ = 1, θ = 0', 'k = 5, σ = 1, θ = 0', ...
          'k = 20, σ = 1, θ = 0', 'k = 1, σ = 2, θ = 0', ...
          'k = 5, σ = 2, θ = 0', 'k = 20, σ = 2, θ = 0'}, ...
         'location', 'northeast')
 title ('Generalized Pareto PDF')
 xlabel ('values in x')
 ylabel ('density')
plotted figure
