Function Reference: plotPartialDependence

statistics: plotPartialDependence (Mdl, Vars)

statistics: plotPartialDependence (Mdl, Vars, Labels)

statistics: plotPartialDependence (…, Data)

statistics: plotPartialDependence (fun, Vars, Data)

statistics: plotPartialDependence (…, name, value)

statistics: ax = plotPartialDependence (…)

Plot partial dependence and individual conditional expectation.

plotPartialDependence (Mdl, Vars) draws the partial dependence of the model Mdl on the predictors named by Vars: a line where one is named and a surface where two are. The arguments are those of partialDependence, which computes what is drawn, and Labels is required for a classification model in the same way.

ax is the axes drawn into.

NameValue
'Conditional'What to draw: 'none' (default) draws the partial dependence alone; 'absolute' draws a curve per observation, a marker where each one sits on its own curve, and the mean of those curves over them; 'centered' draws the same with every curve shifted to start at zero. Only one predictor may be varied, and a classification model may name only one class.
'Parent'The axes to draw into. The default is gca.

Every other name-value pair is passed to partialDependence; see there for 'QueryPoints', 'NumObservationsToSample' and the rest.

The line a conditional plot draws is the mean of the curves drawn with it, which is not always what partialDependence returns. A decision tree, an ensemble of bagged trees and a generalized additive model are answered over the distribution they were fitted on, while a curve belongs to one observation and must come from predict, so the two part company for those models whenever the observations are not the ones the model was fitted on. MATLAB R2024a draws it this way and so does this.

See also: partialDependence, PredictiveModel

Source Code: plotPartialDependence

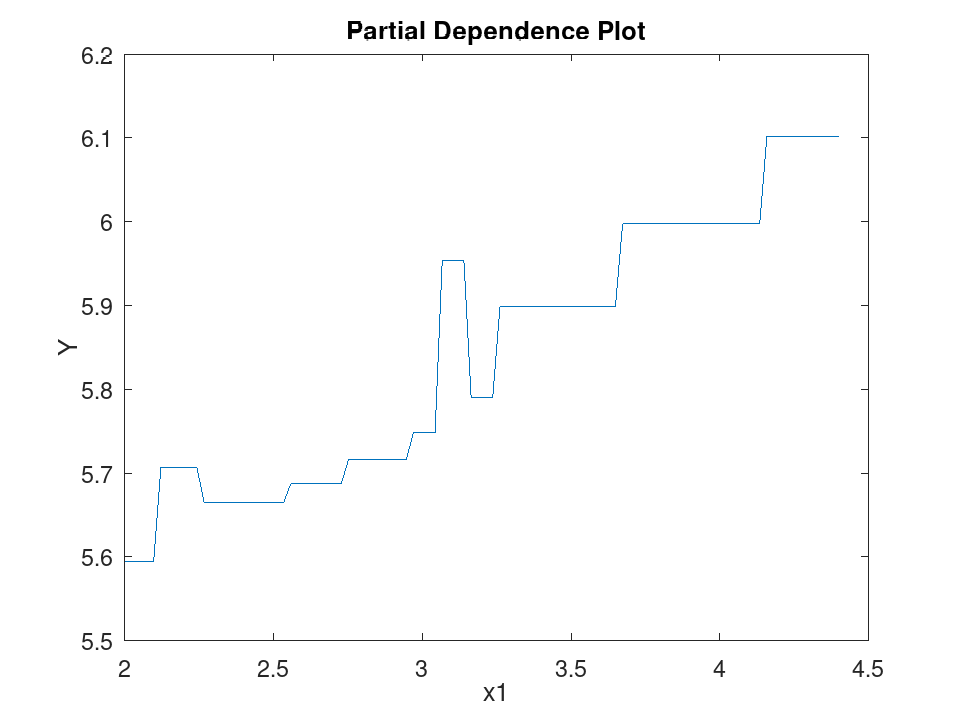

The partial dependence of a fitted tree on one predictor. The line is what the tree answers on average as that predictor is varied over its range, the others left as the data holds them.

 load fisheriris
 Mdl = fitrtree (meas(:,2:4), meas(:,1));
 plotPartialDependence (Mdl, 1);
plotted figure

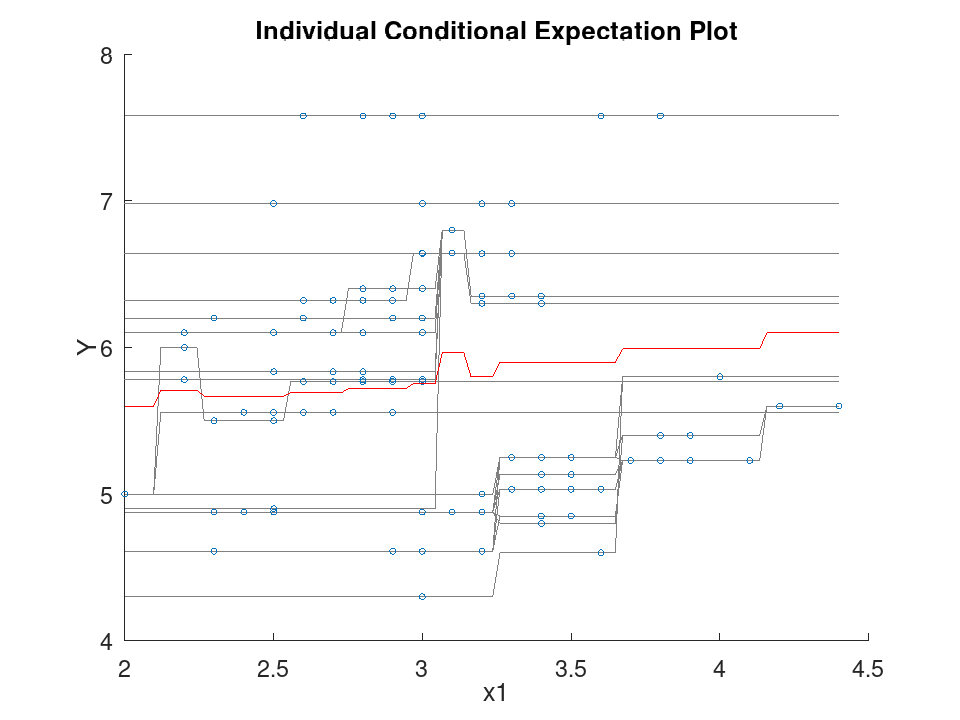

The same tree, with one curve per observation. Each grey curve is what the model answers for a single flower as the predictor is varied; the red line is their mean and the circles mark where each flower sits.

 load fisheriris
 Mdl = fitrtree (meas(:,2:4), meas(:,1));
 plotPartialDependence (Mdl, 1, 'Conditional', 'absolute');
plotted figure

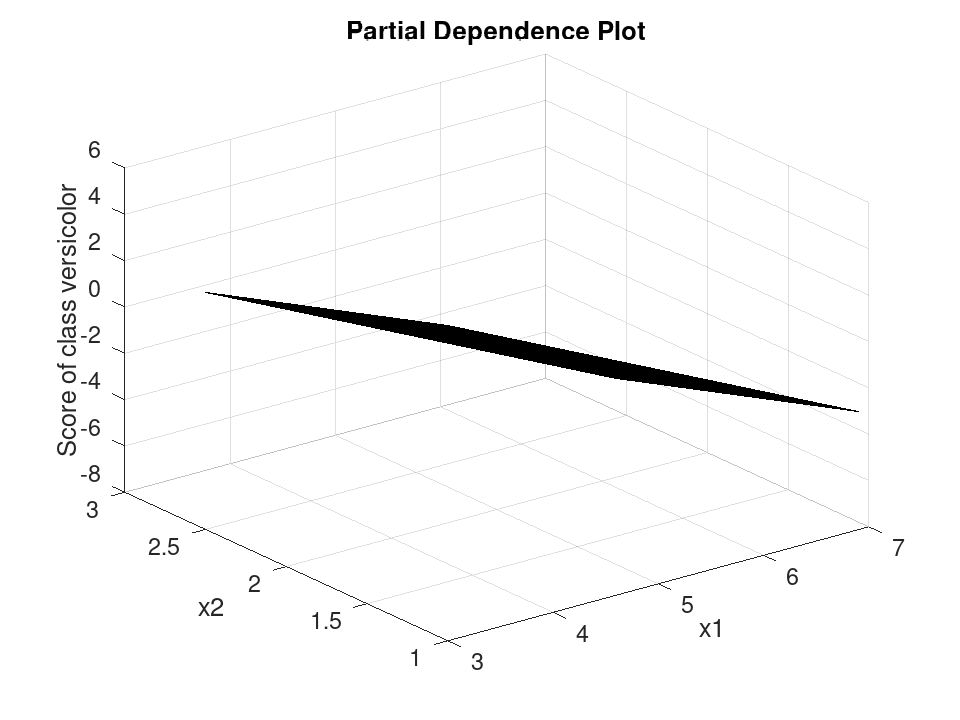

Two predictors give a surface, and a classification model is told which class to answer for.

 load fisheriris
 Mdl = fitcsvm (meas(51:end,3:4), species(51:end));
 plotPartialDependence (Mdl, [1, 2], 'versicolor');
plotted figure
