scatterhist (x, y) draws a scatter plot of the vectors x and y in a central set of axes, with a histogram of x above it and a histogram of y to its right. x and y must be vectors of the same length; NaN values are removed pairwise from the scatter plot and individually from each marginal histogram.

The following name/value pairs are accepted:

"Group"

A grouping variable (numeric, logical, character, string, or cell array of strings) with one entry per point. The scatter points and the marginal histograms are separated and colored by group.

"NBins"

The number of bins for the marginal histograms, either a scalar applied to both or a two-element vector [nx ny]. The default is chosen by Scott’s rule.

"Kernel"

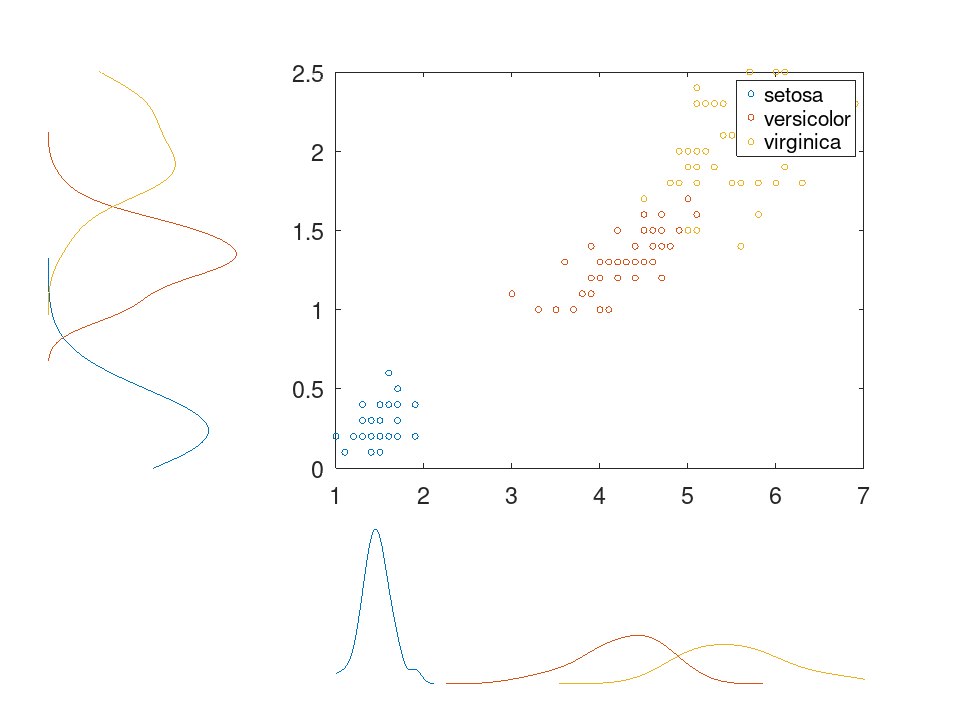

"off" (default) draws histograms for the marginals; "on" or "overlay" draws kernel density estimates instead.

"Location"

Corner occupied by the marginal plots, the scatter taking the opposite one: "SouthWest" (default), "SouthEast", "NorthEast", or "NorthWest".

"Legend"

"on" or "off" to show or hide the group legend. The default is "on" when a grouping variable is supplied.

"Marker", "MarkerSize"

The marker symbol(s) and size(s) for the scatter points, cycled over the groups.

The optional output h is a three-element vector of axes handles: the central scatter axes, the axes of the x (horizontal) histogram, and the axes of the y (vertical) histogram.

The y histogram’s axes is built differently from MATLAB’s and its properties read accordingly. We plot that marginal transposed, so its "XLim" is the density and "XDir" carries the bar direction. MATLAB plots it like the x one – data along "XLim", density along "YLim" – and rotates the whole axes by setting "View" to [270, 90], so there the direction is carried by "YDir" and "XDir" is always "normal". The picture is the same; code reading those properties off h(3) is not portable between the two.

'Parent' draws into a supplied figure or uipanel instead of the current figure. The container is used as it stands and is never cleared, so a scatterhist can be placed alongside other axes.

'Location' names the corner the marginal histograms occupy, 'SouthWest' by default, or 'SouthEast', 'NorthEast' or 'NorthWest'; the scatter takes the opposite corner. With the default the histograms are drawn below and to the left of the scatter.

'Direction' points the marginal bars toward the scatter plot, 'in' by default, or away from it with 'out', whichever side 'Location' has placed them on.

'PlotGroup' draws one marginal per group with 'on', or a single pooled marginal with 'off'. It defaults to 'on' when 'Group' is given and to 'off' otherwise.

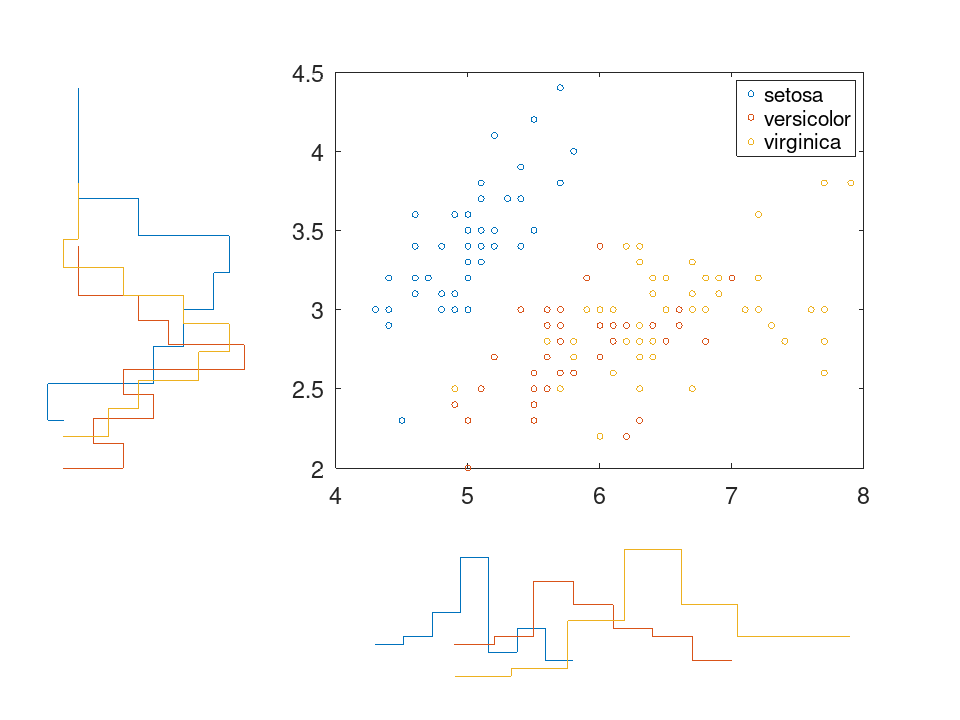

'Style' outlines the marginals as 'bar' or 'stairs', defaulting to stairs when the data are grouped and bars when they are not.

'Color' sets the group colours, either as a character vector of colour names or as an $N$-by-3 matrix of RGB values, cycled over the groups.

'LineStyle' and 'LineWidth' style the marginal outlines, not the scatter markers, and are cycled over the groups.

'Bandwidth' sets the kernel bandwidth used when 'Kernel' is on: a scalar for all marginals, a pair for x and y, or one row per group.

See also: gscatter, scatter, hist, ksdensity

Source Code: scatterhist
