Function Reference: stdrpdf

statistics: y = stdrpdf (x, k, df)

Studentized range probability density function (PDF).

For each element of x, compute the probability density function (PDF) of the studentized range distribution for k groups and df degrees of freedom. The size of y is the common size of x, k and df. A scalar input functions as a constant matrix of the same size as the other inputs.

k must be an integer of at least 2 and df positive, Inf included; otherwise y is NaN. The density is zero for negative x and, for k greater than 2, at zero.

MATLAB has no public counterpart of this function.

Further information about the studentized range distribution can be found at https://en.wikipedia.org/wiki/Studentized_range_distribution

Input arguments must be double or single; integer, logical, and character arrays are rejected.

See also: stdrcdf, stdrinv, stdrrnd, stdrstat

Source Code: stdrpdf

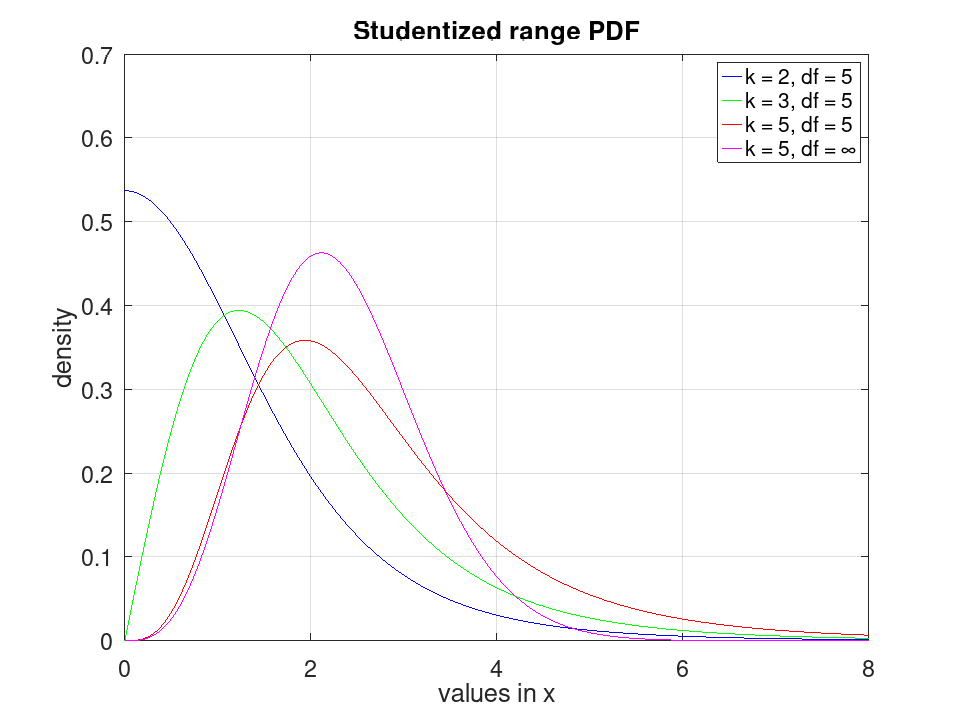

Plot various PDFs from the studentized range distribution

 x = 0:0.01:8;
 y1 = stdrpdf (x, 2, 5);
 y2 = stdrpdf (x, 3, 5);
 y3 = stdrpdf (x, 5, 5);
 y4 = stdrpdf (x, 5, Inf);
 plot (x, y1, '-b', x, y2, '-g', x, y3, '-r', x, y4, '-m')
 grid on
 legend ({'k = 2, df = 5', 'k = 3, df = 5', 'k = 5, df = 5', ...
          'k = 5, df = \infty'}, 'location', 'northeast')
 title ('Studentized range PDF')
 xlabel ('values in x')
 ylabel ('density')
plotted figure
